Module 1 Formstorming

Weekly Activity Template

yiyi Yan "Model project1 process with final"

Project 1

Module 1

Process exercises and final assignments

Activity 1

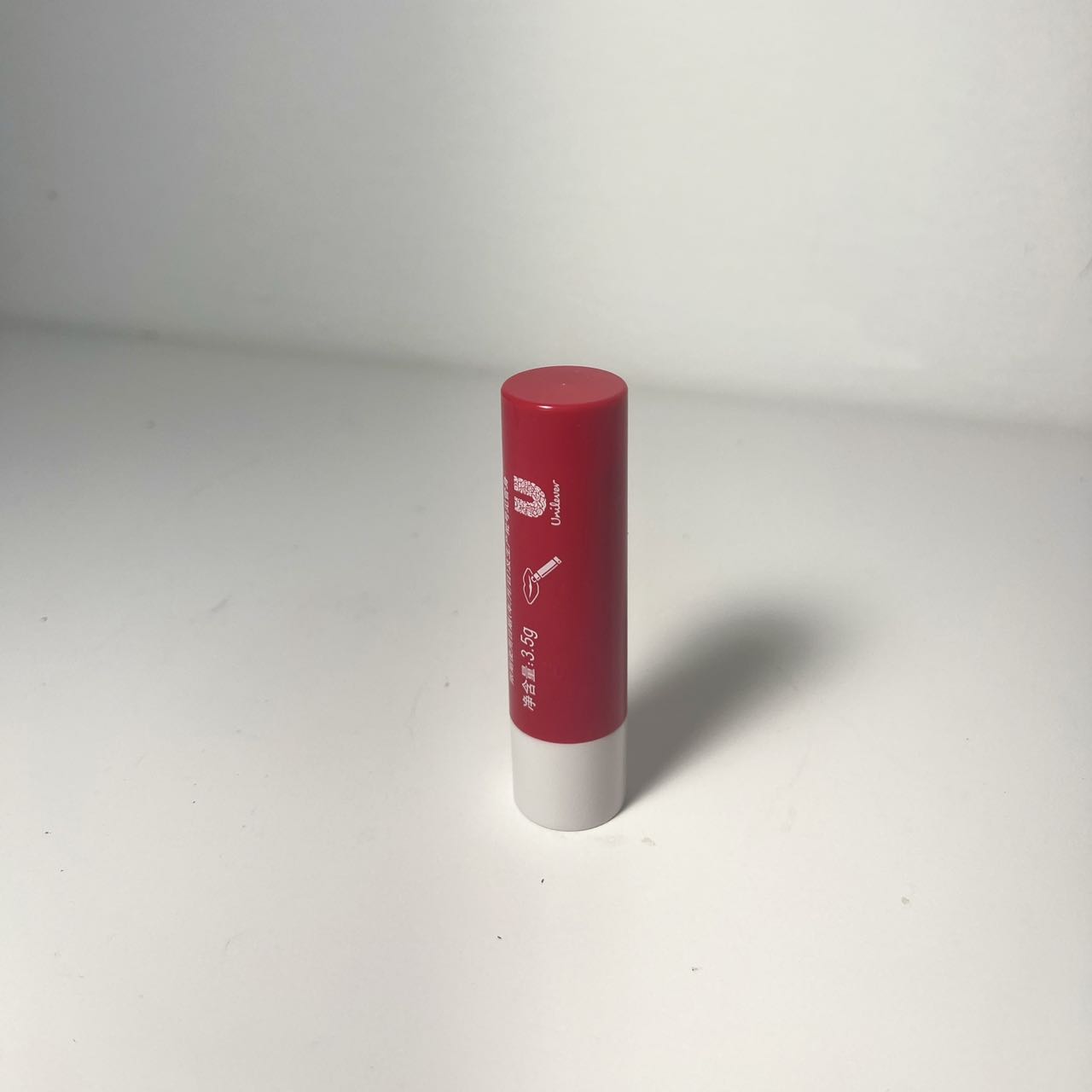

Positive photo of a cylindrical lipstick

The photo taken from the top of the lipstick is a standard round shape

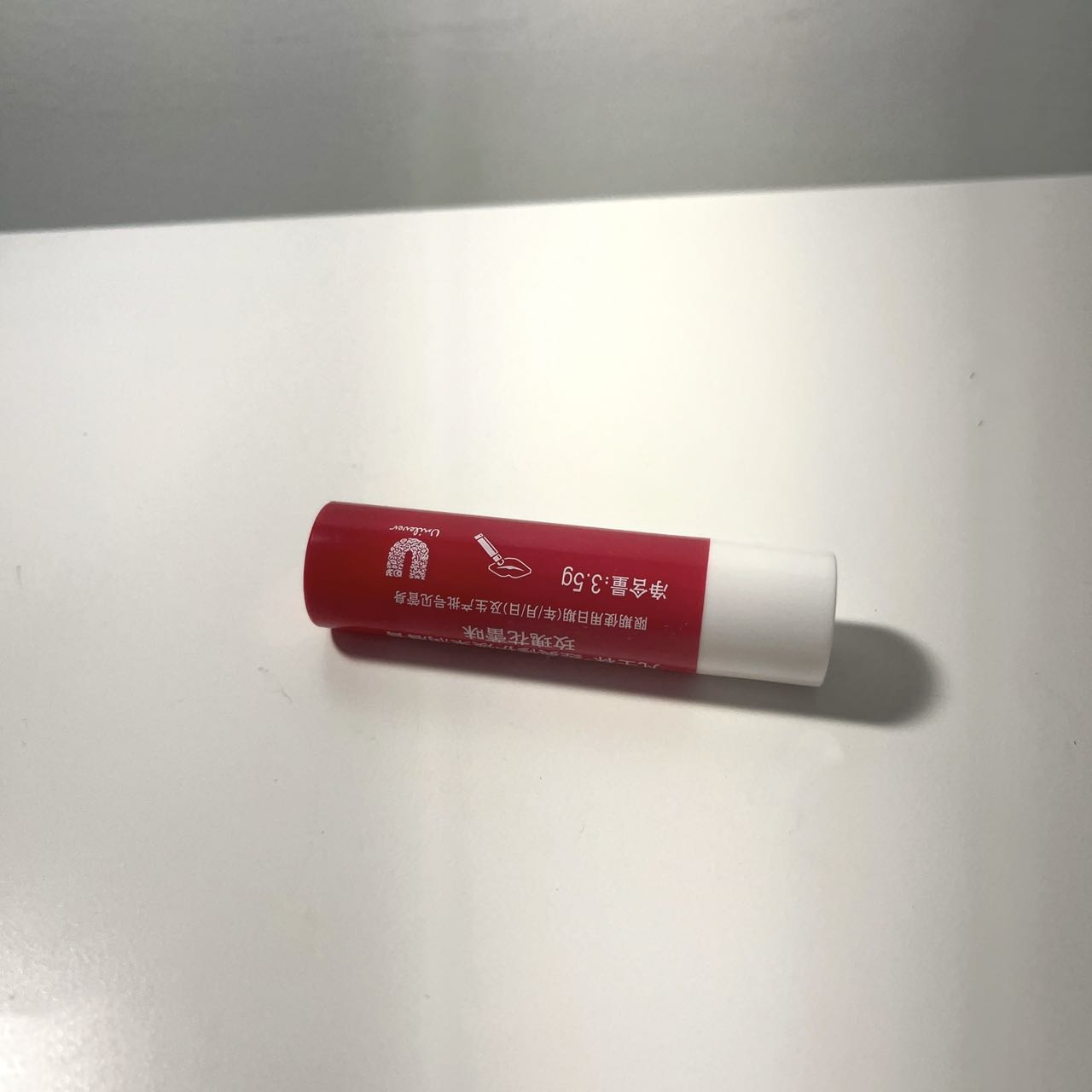

Cylindrical lipstick lying horizontally on the table

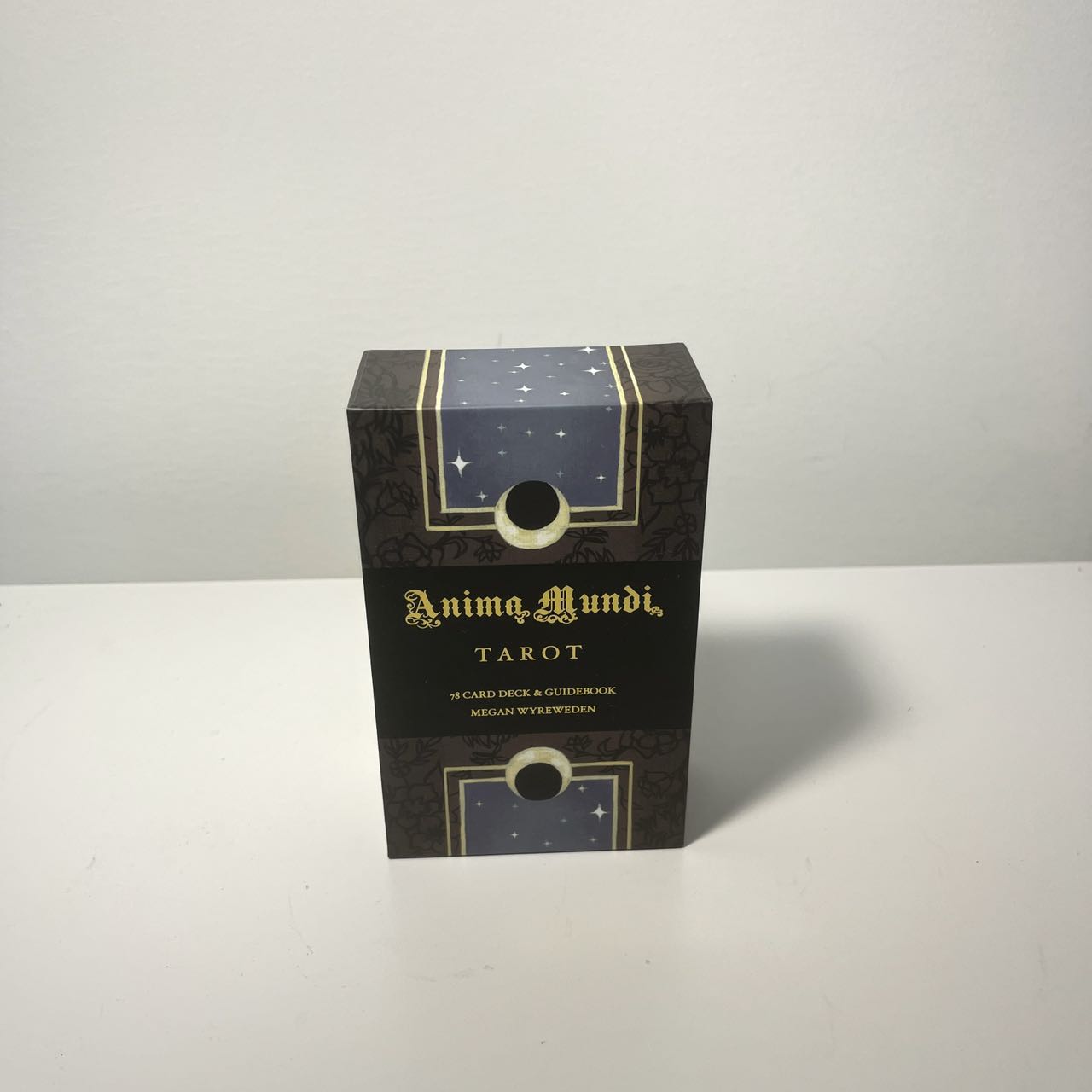

A photo of the box standing upright on a tabletop, taken from the front.

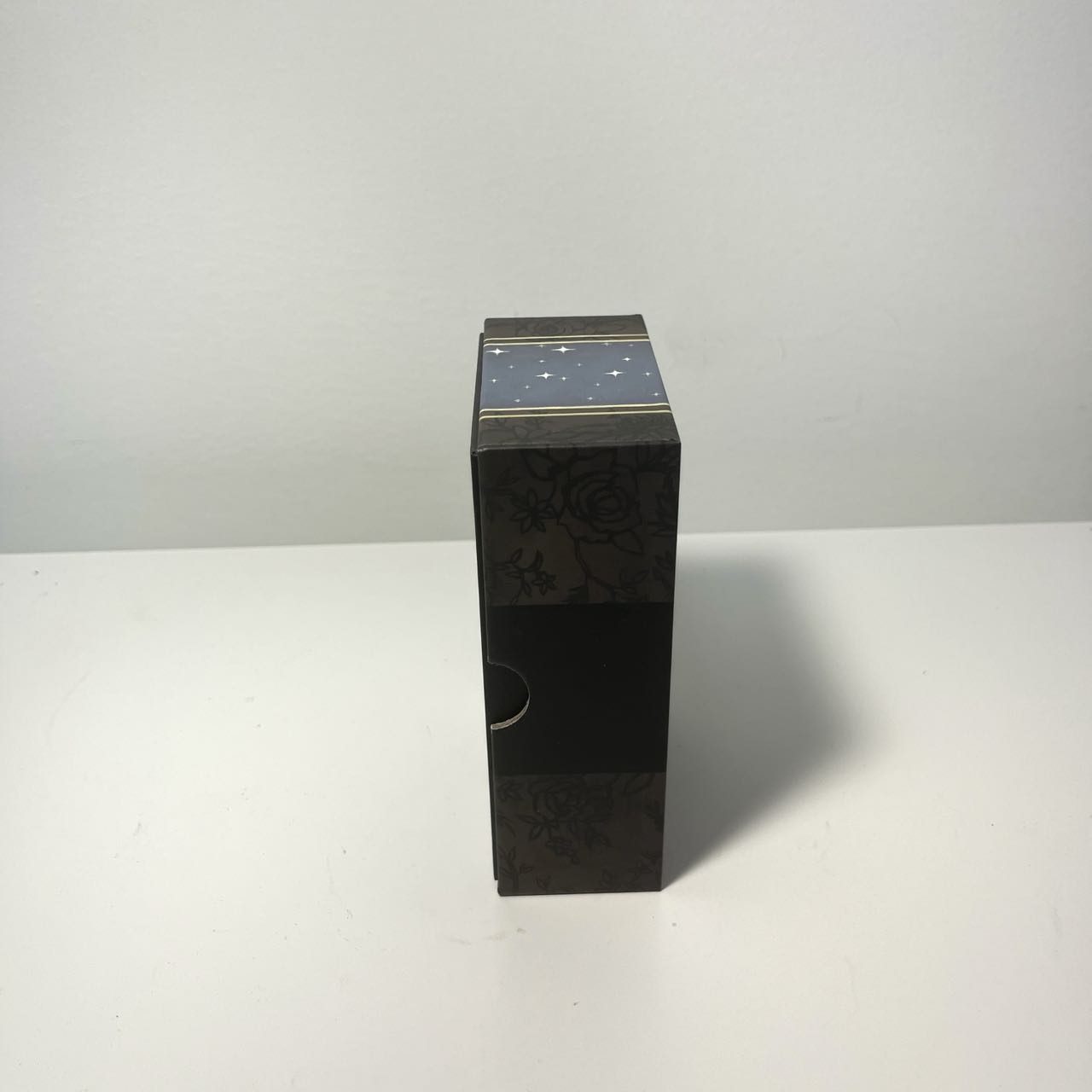

Rectangular box standing upright on a tabletop, photographed from the side

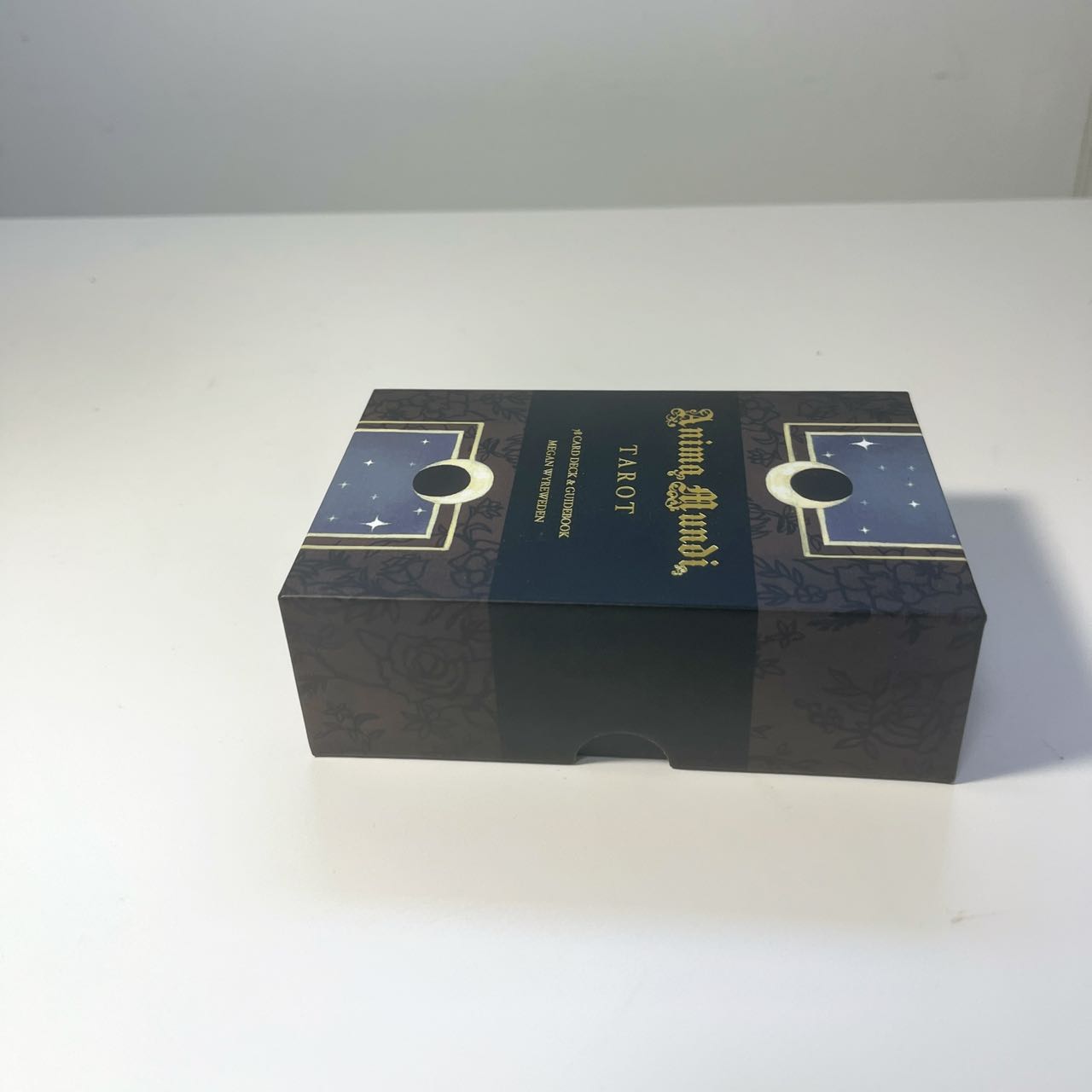

Photo taken from the right side of the box

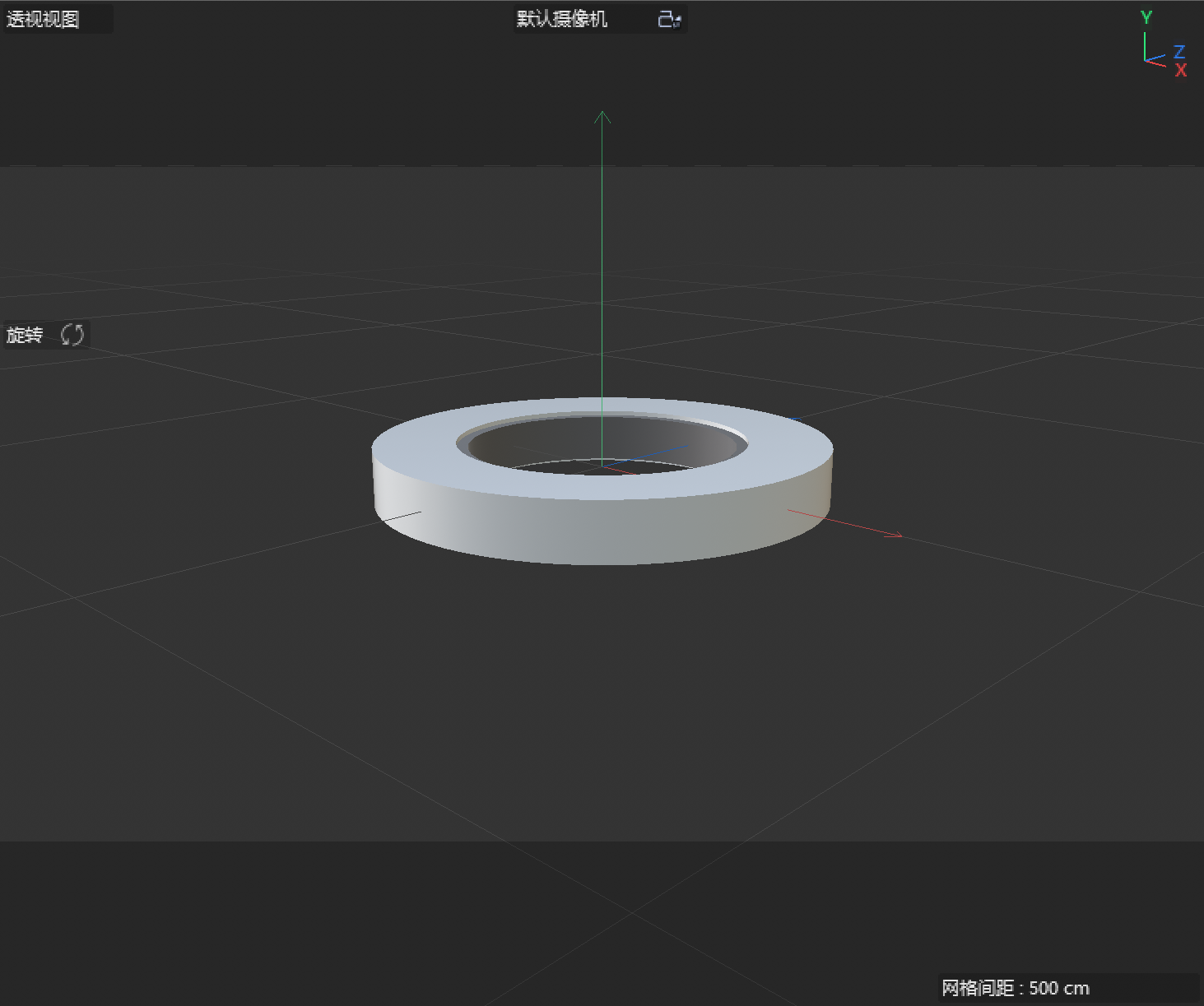

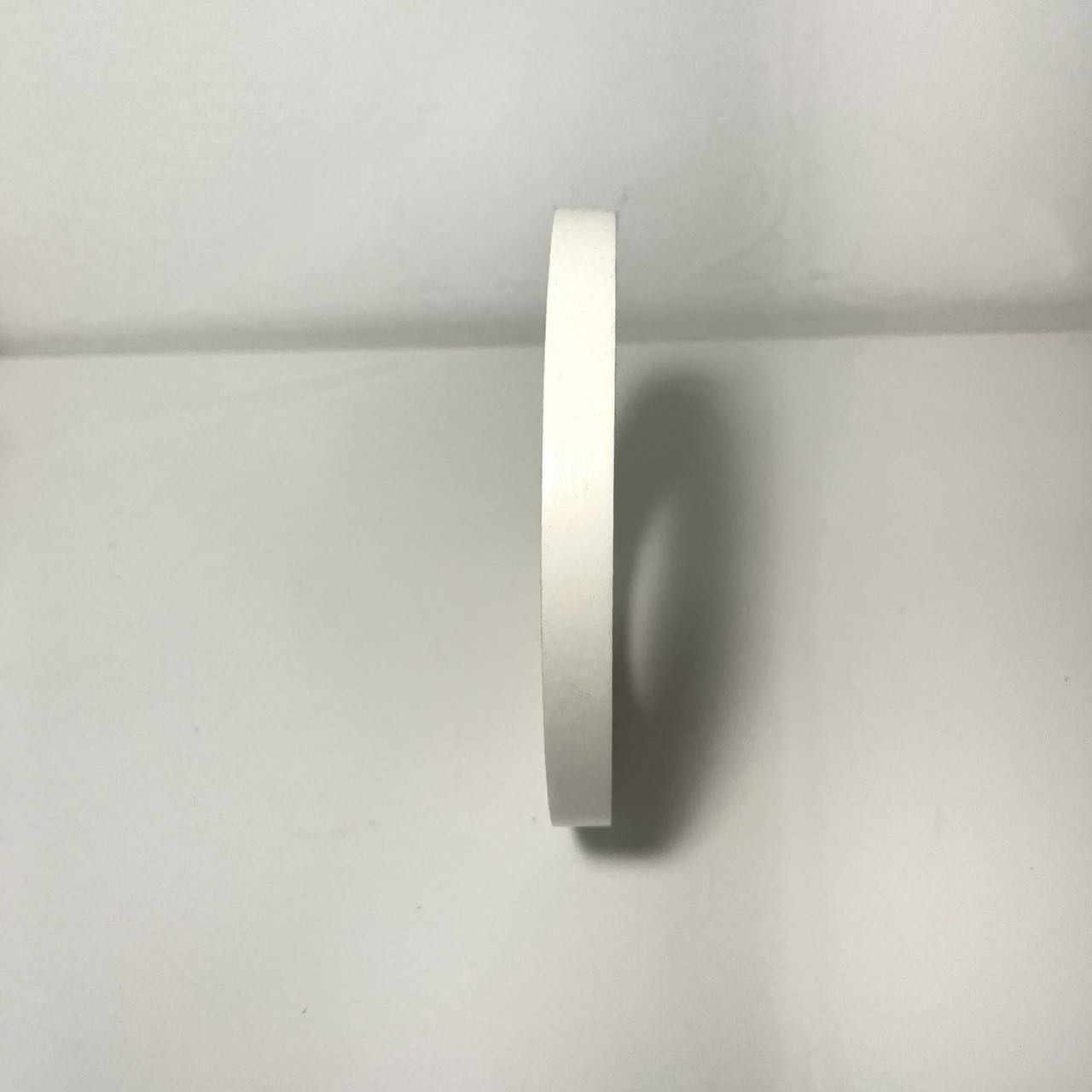

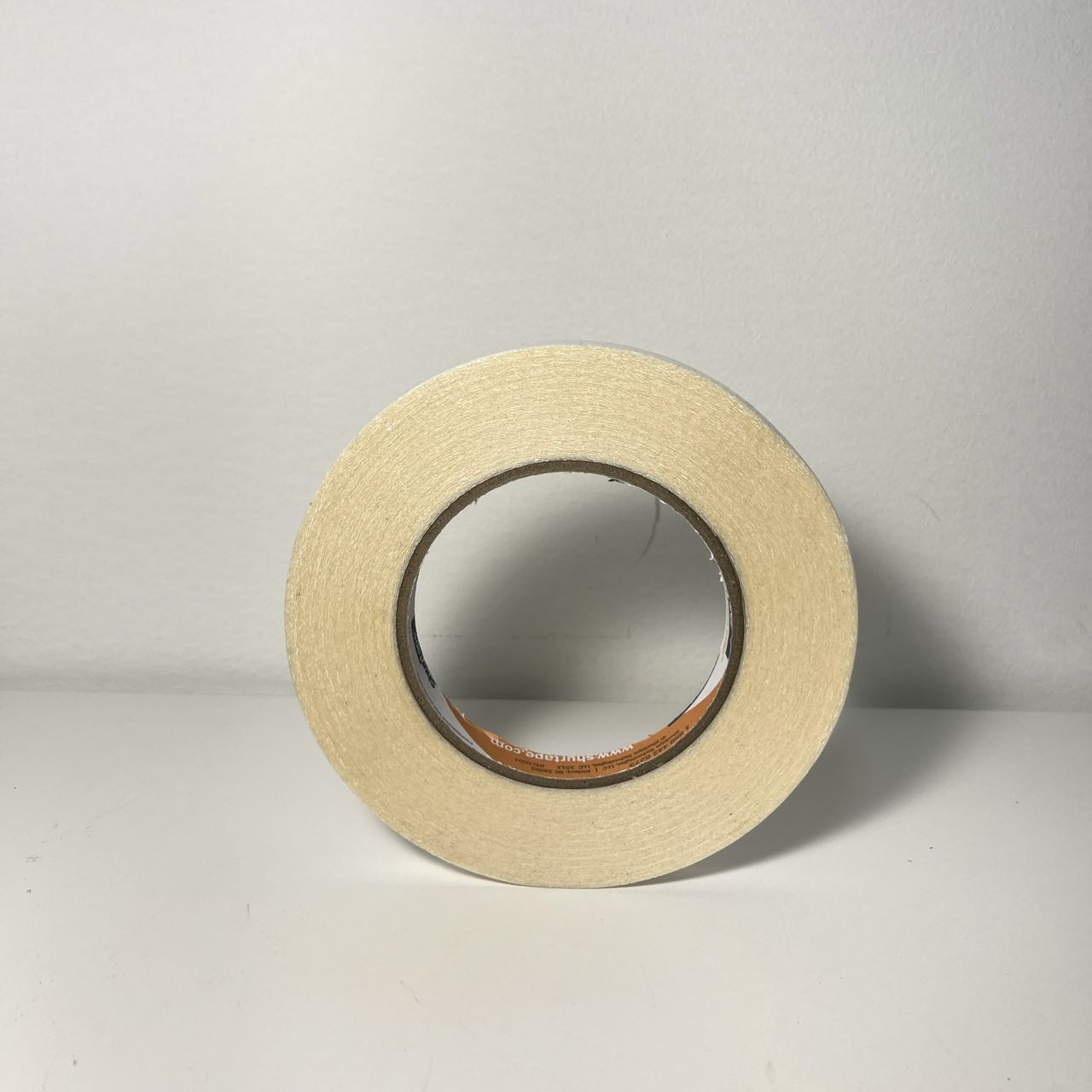

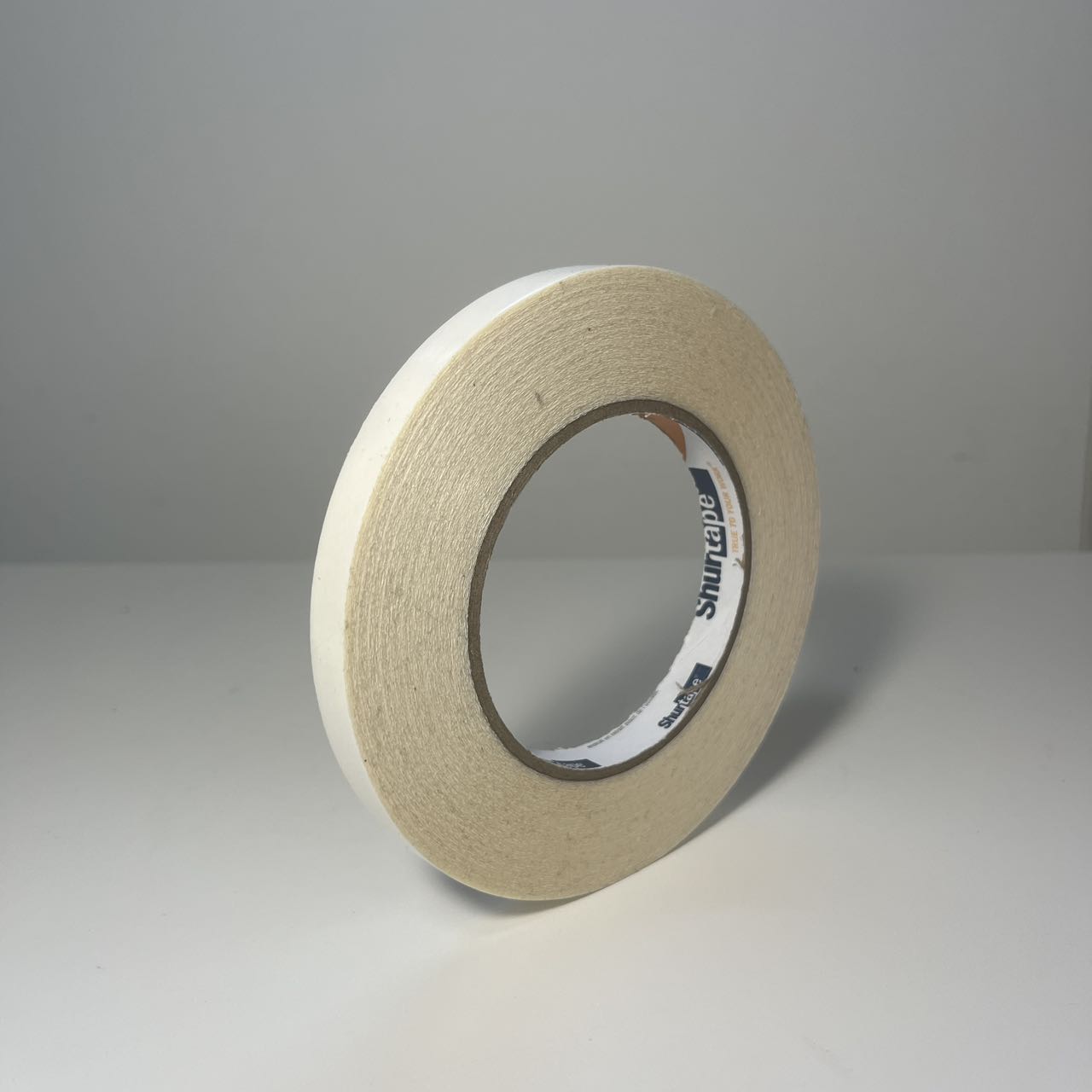

Double-sided tape standing on a table, shot from the side

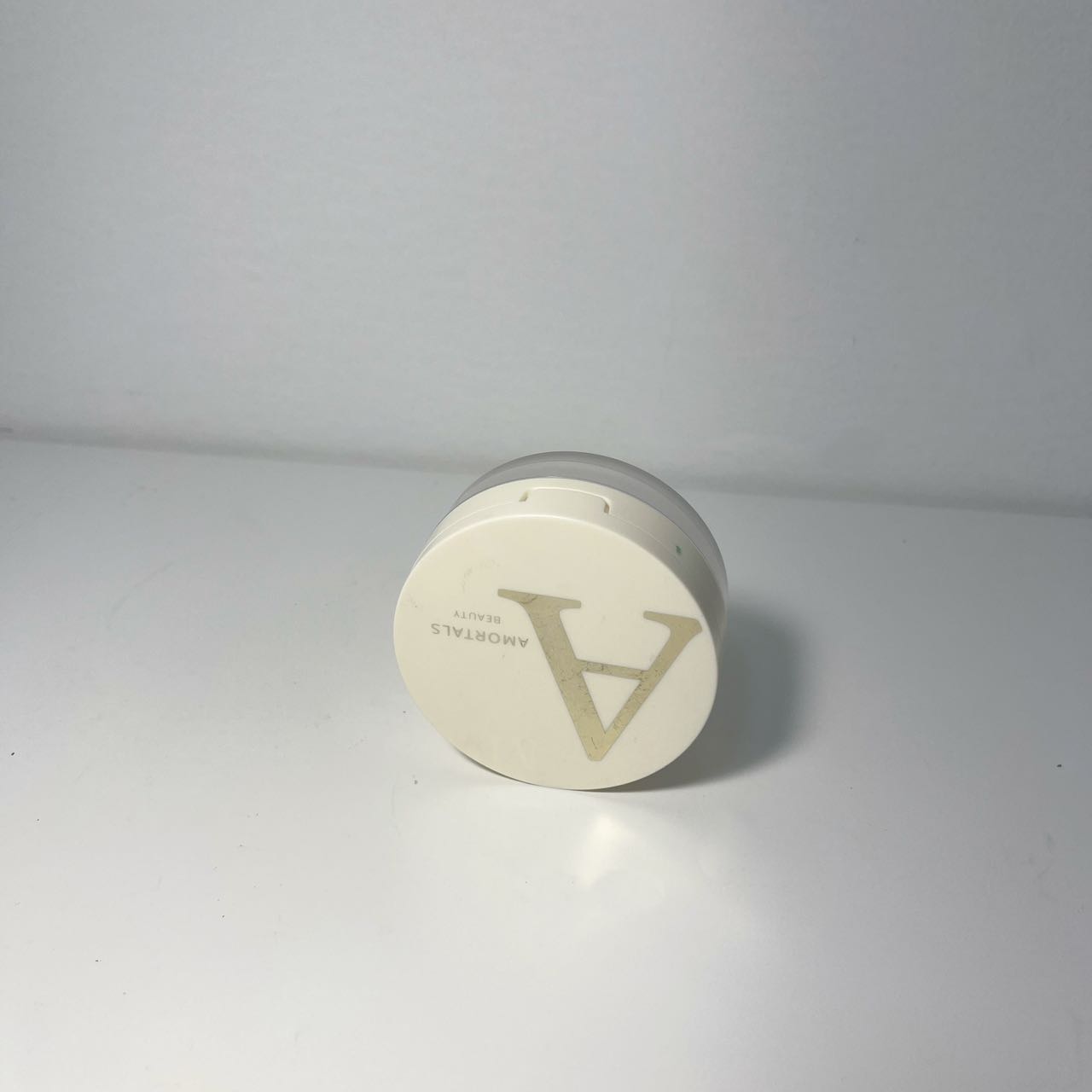

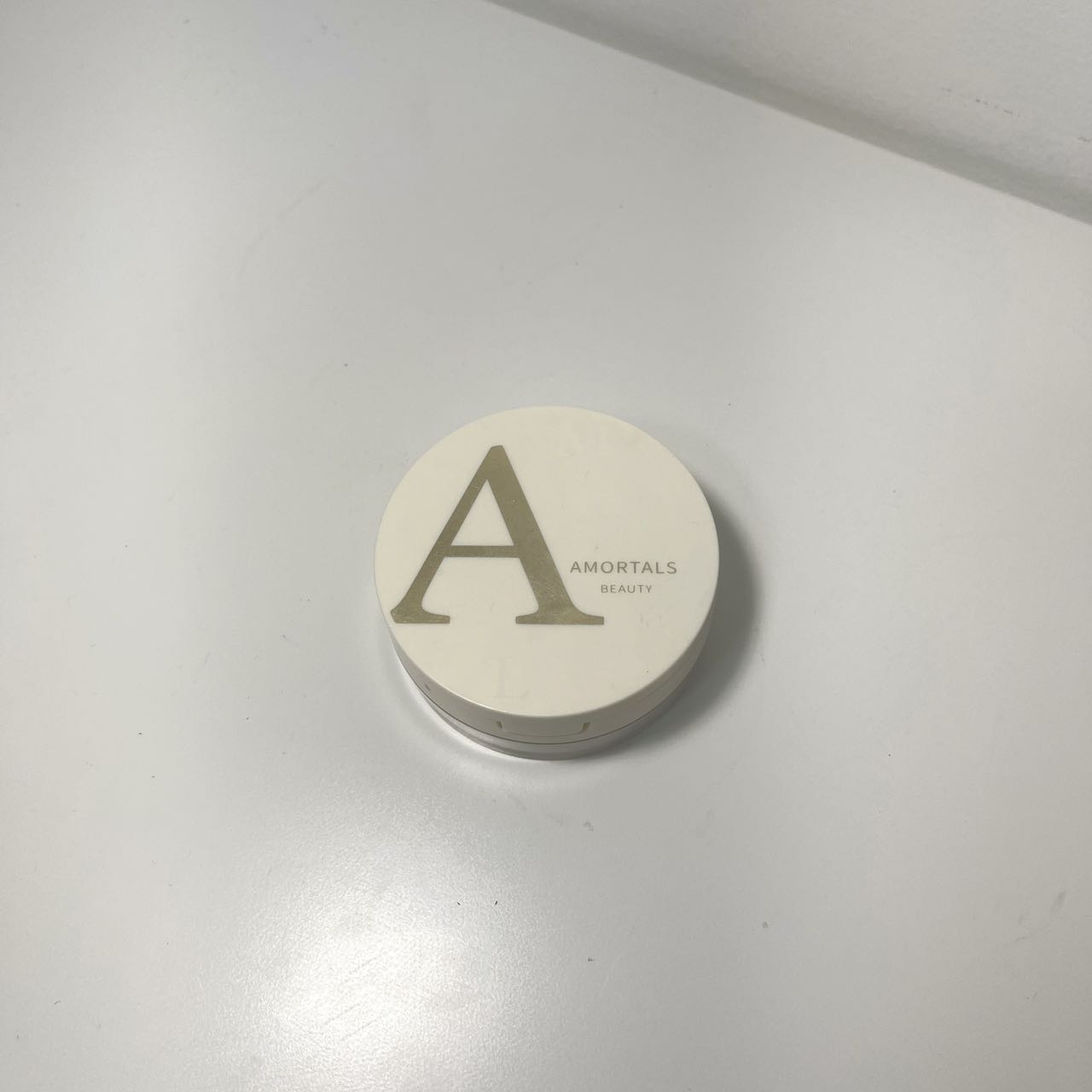

A photo of the front of the loose powder as it stands on the table

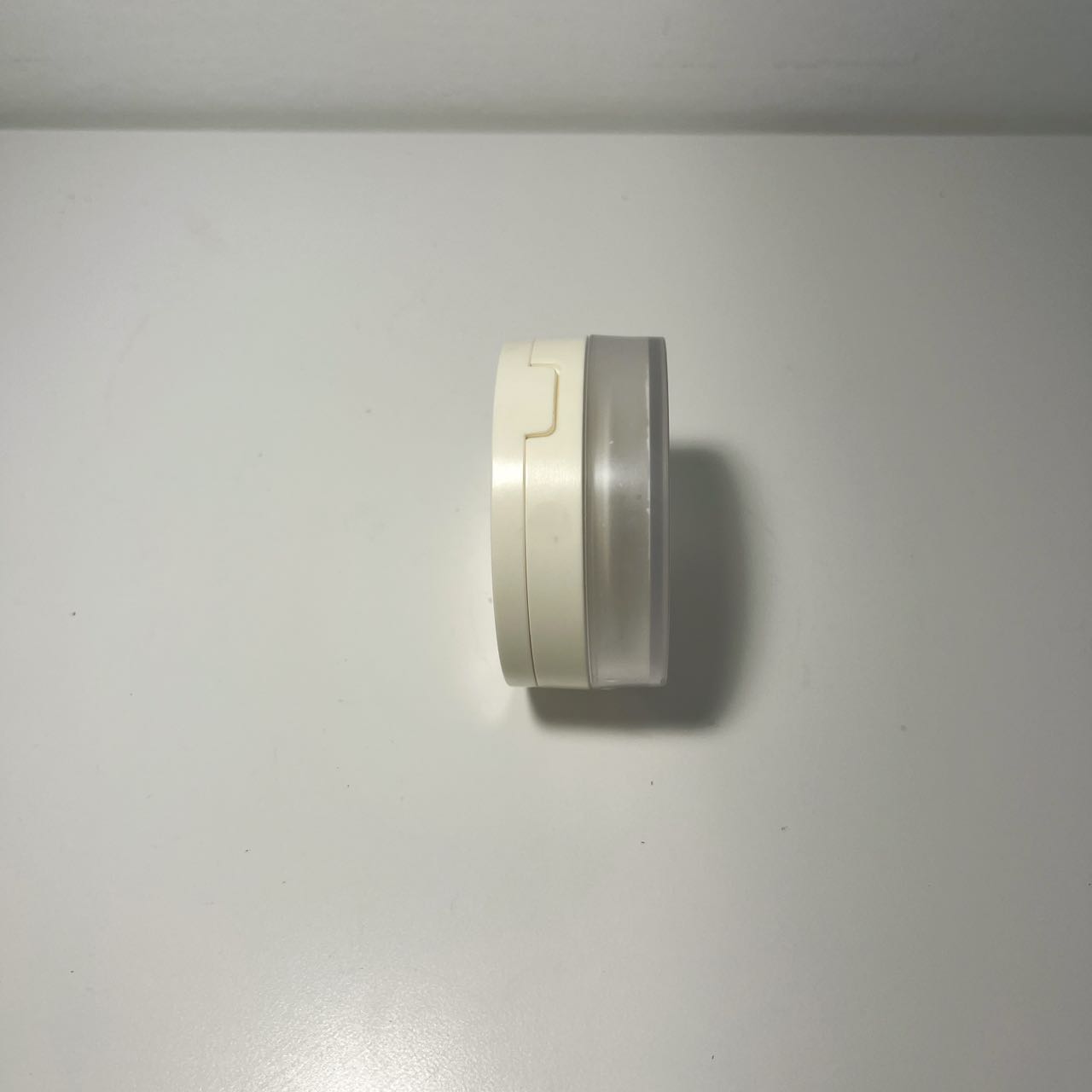

Side view of loose powder standing on a table

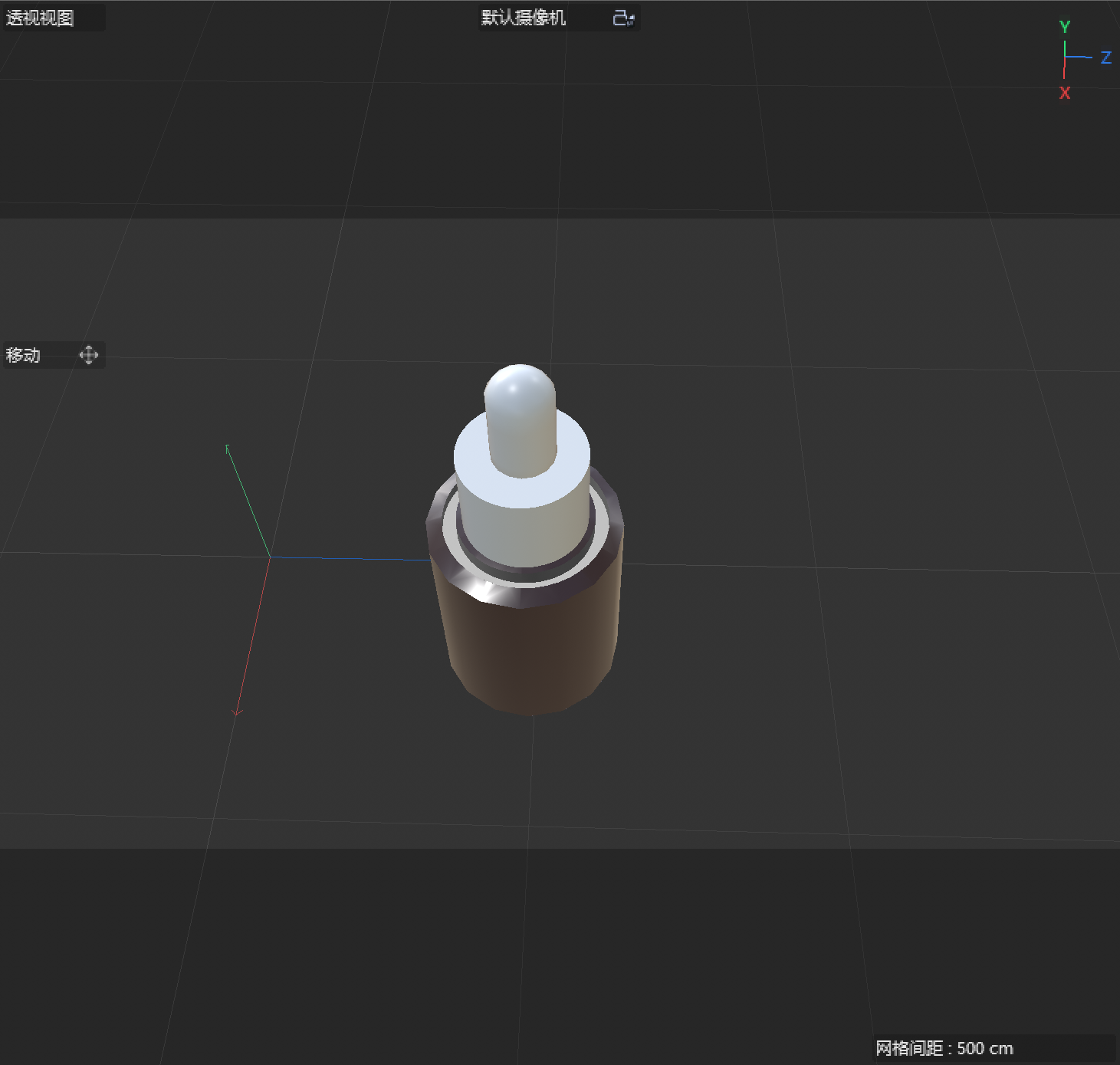

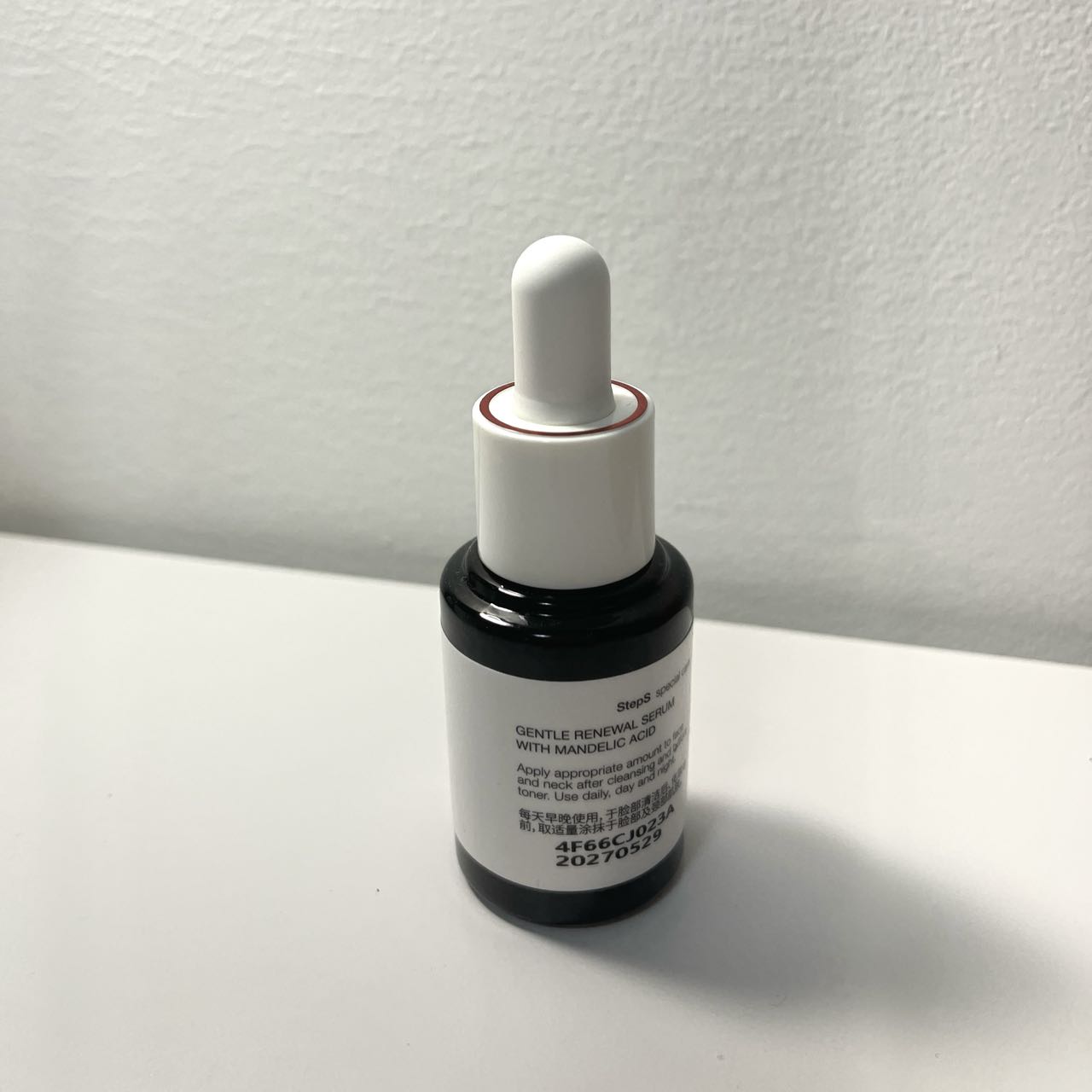

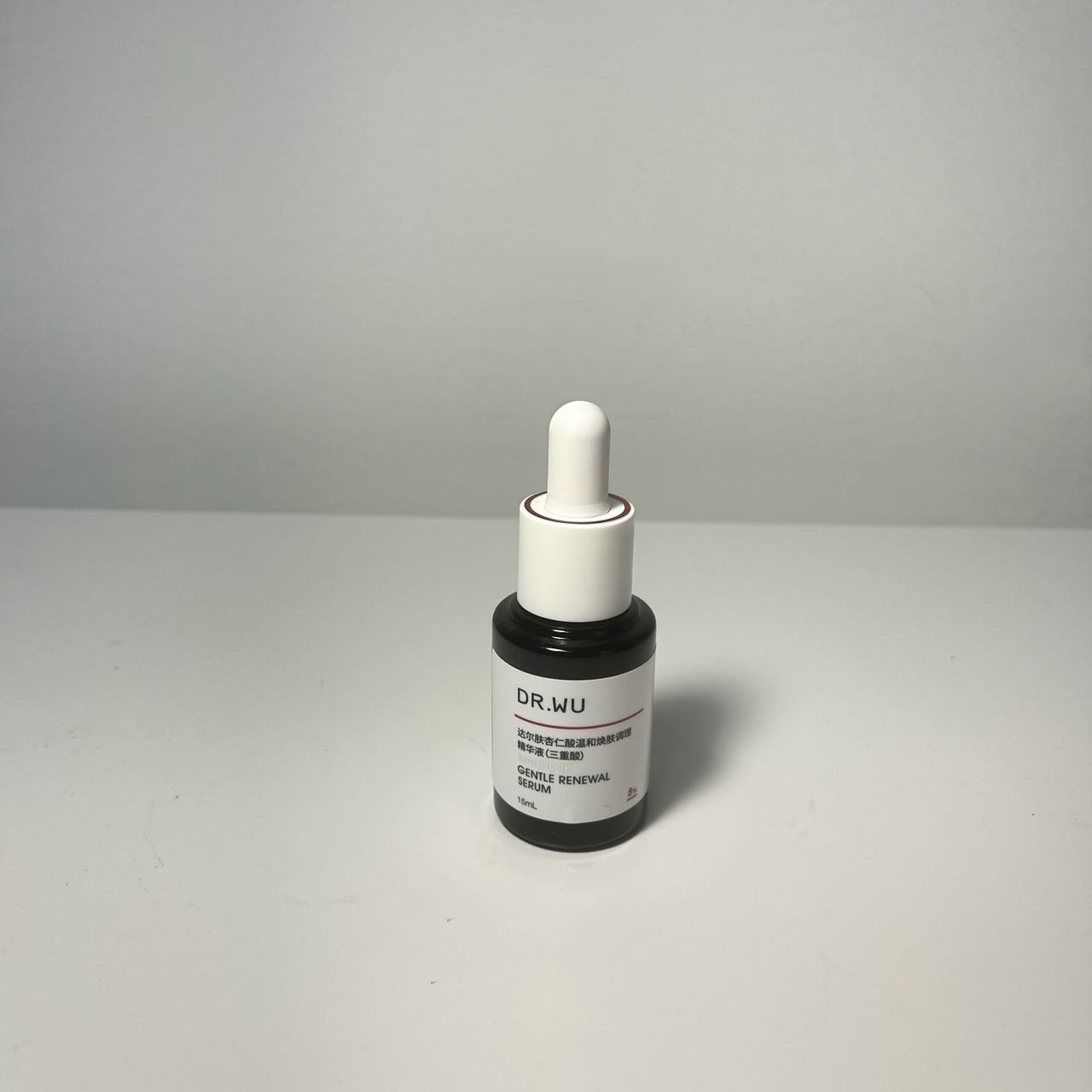

Detailed photo of the front of the essential oil

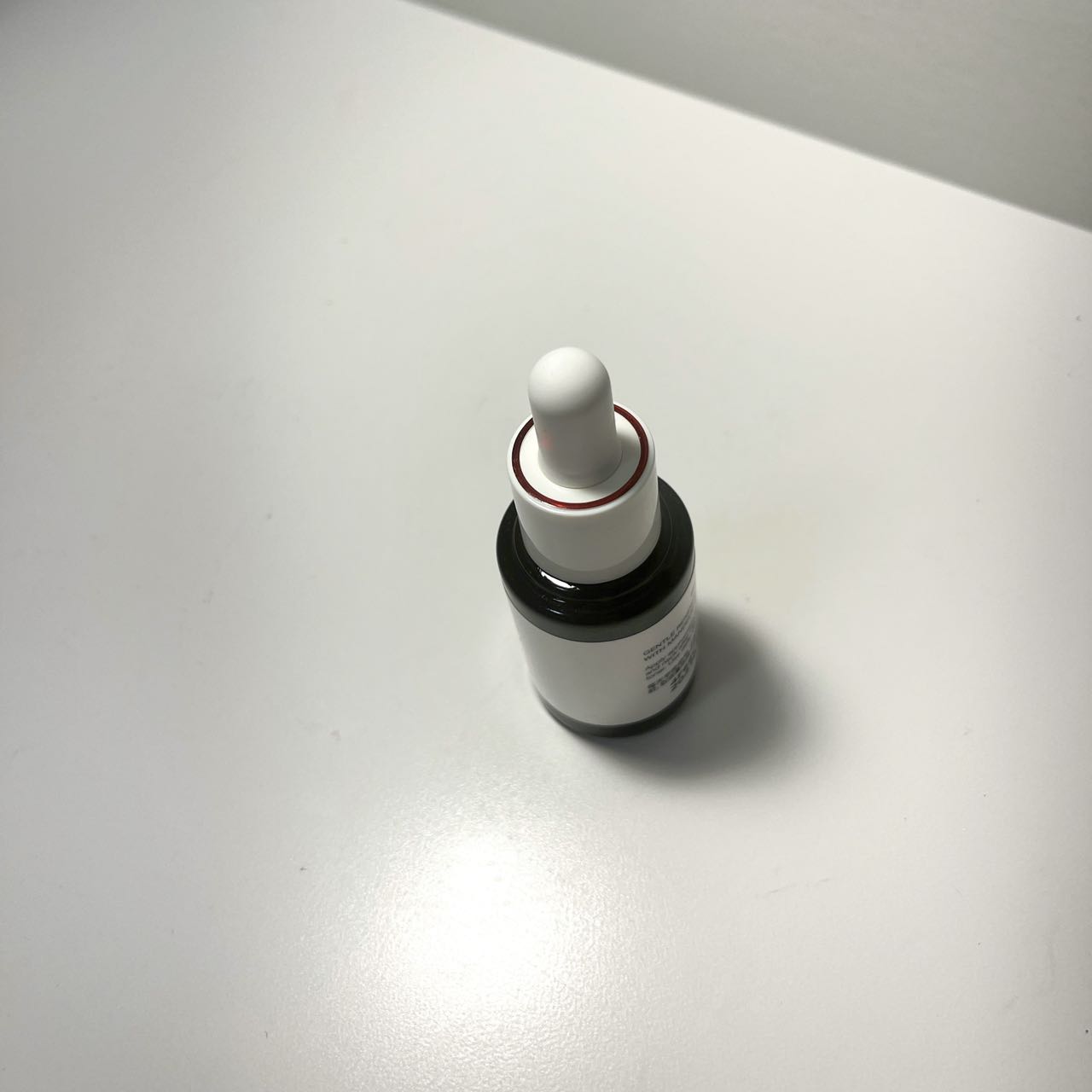

Photos of essential oils taken from the top

Activity 2

Material Workshop 1

$I chose glass because it can be used for the lids of thermos cups or essential oil bottles, and it is often used to simulate optical effects such as transparency, reflection and refraction.$ Plastic is flexible and can be expressed in different colors and textures, in my model they can be used in the lids of essential oil bottles and in the bottles of body lotions.

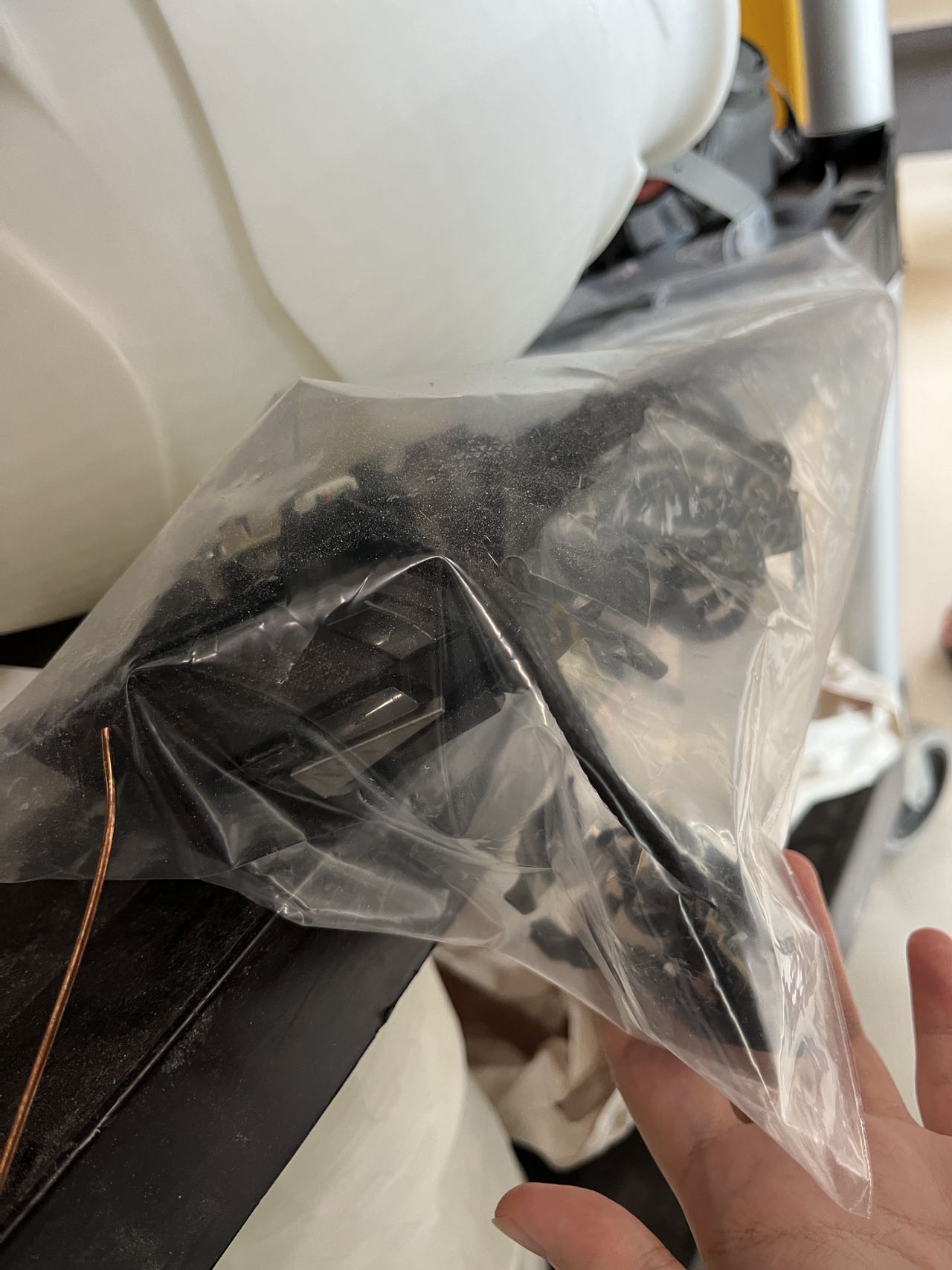

Plastic is flexible and can be expressed in different colors and textures, in my model they can be used in the lids of essential oil bottles and in the bottles of body lotions.

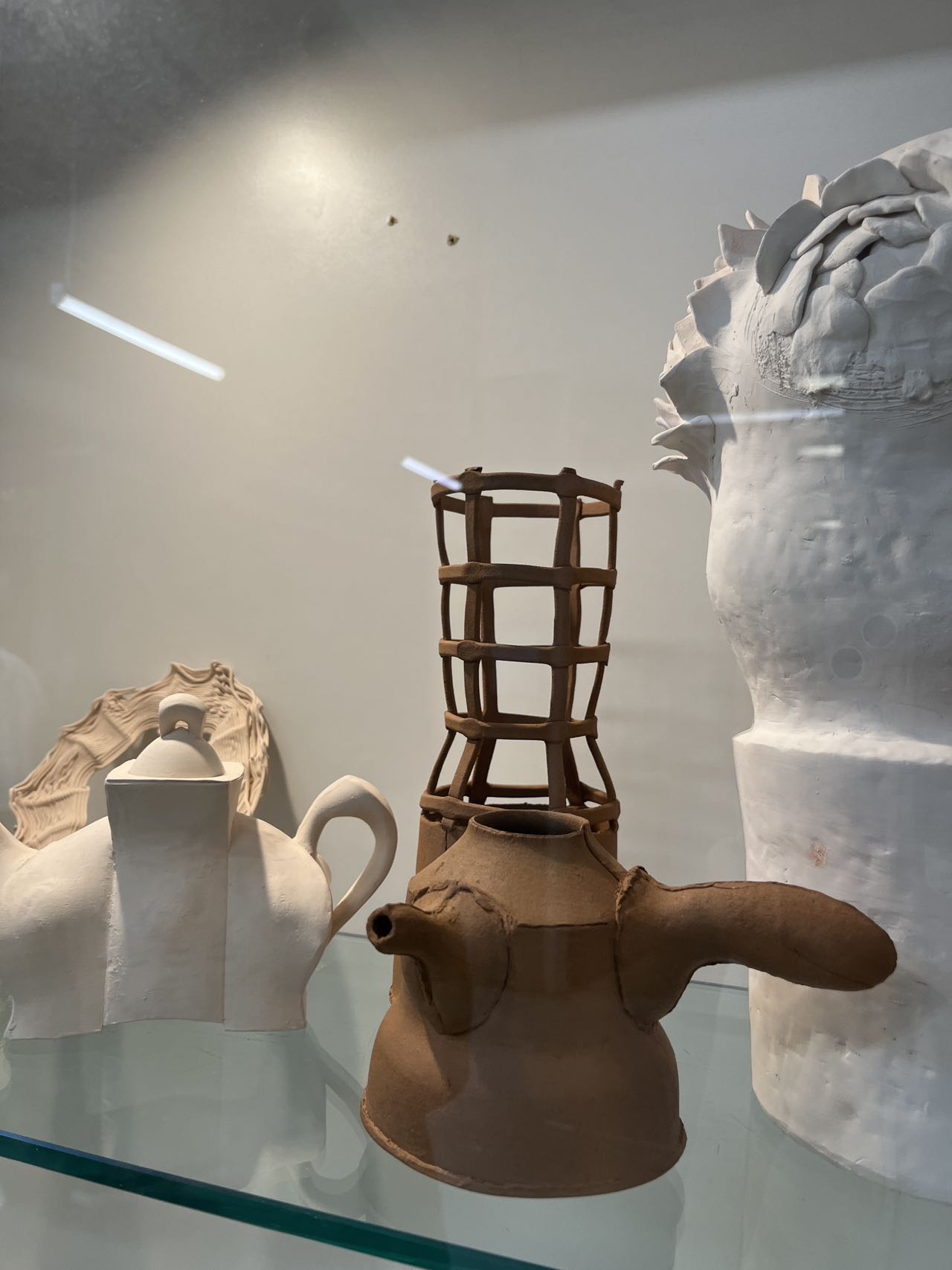

The role of ceramic materials in modeling is mainly based on their unique physical and aesthetic properties, which are especially important in architectural and artistic modeling. Ceramic materials are commonly used in specific areas due to their unique visual texture that is resistant to high temperatures.

Material Workshop 2

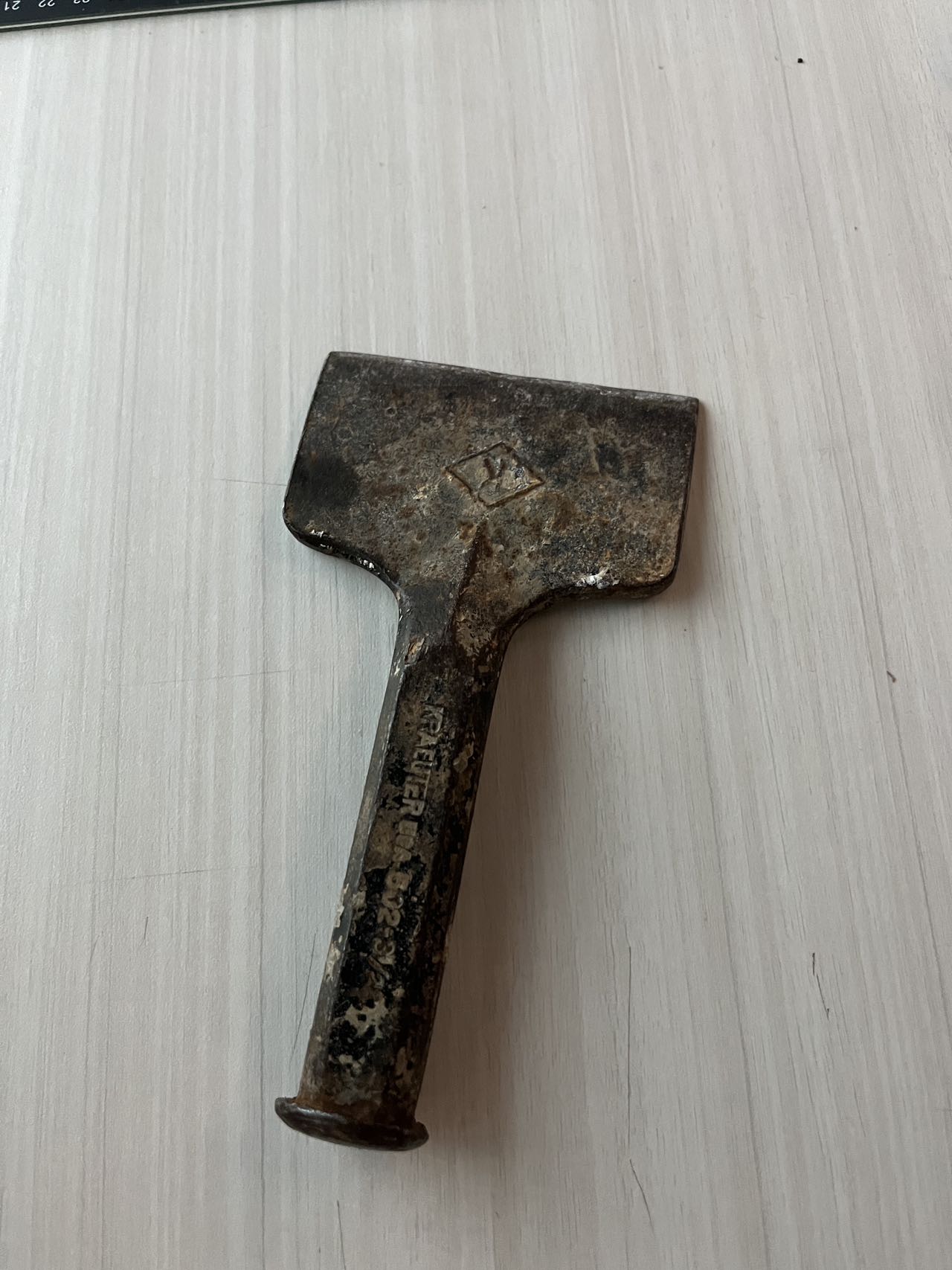

Choose iron this material because it is very practical, in the metal iron is very ordinary appearing material, iron strength and hardness are very high, also have have very good wear resistance and impact resistance, easy to recycle is very good modeling material.

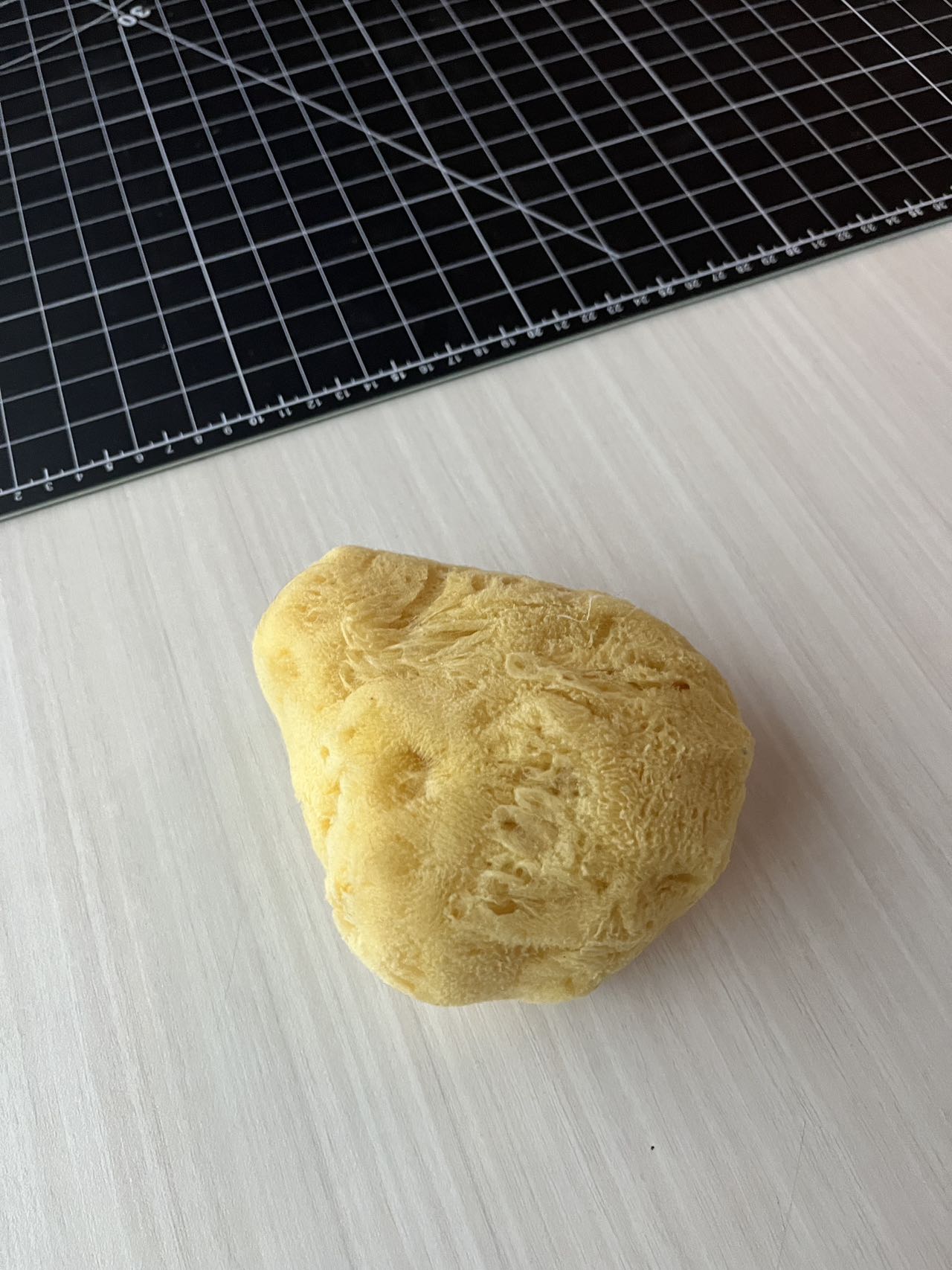

Sponges are very flexible and elastic and can be cut, compressed or bent into a variety of shapes, making them ideal for modeling complex surfaces or models that require a soft texture.

Wood is easy to cut, carve, sand and glue, can be processed by hand or machine into a variety of complex shapes, suitable for the production of detailed models, wood compared to iron and other metals are lighter, but heavier than sponges and other materials, suitable for the need for stability and a certain degree of portability of the model

Project 1

Final Project 1 Design

Physical Published 3D Printed Model

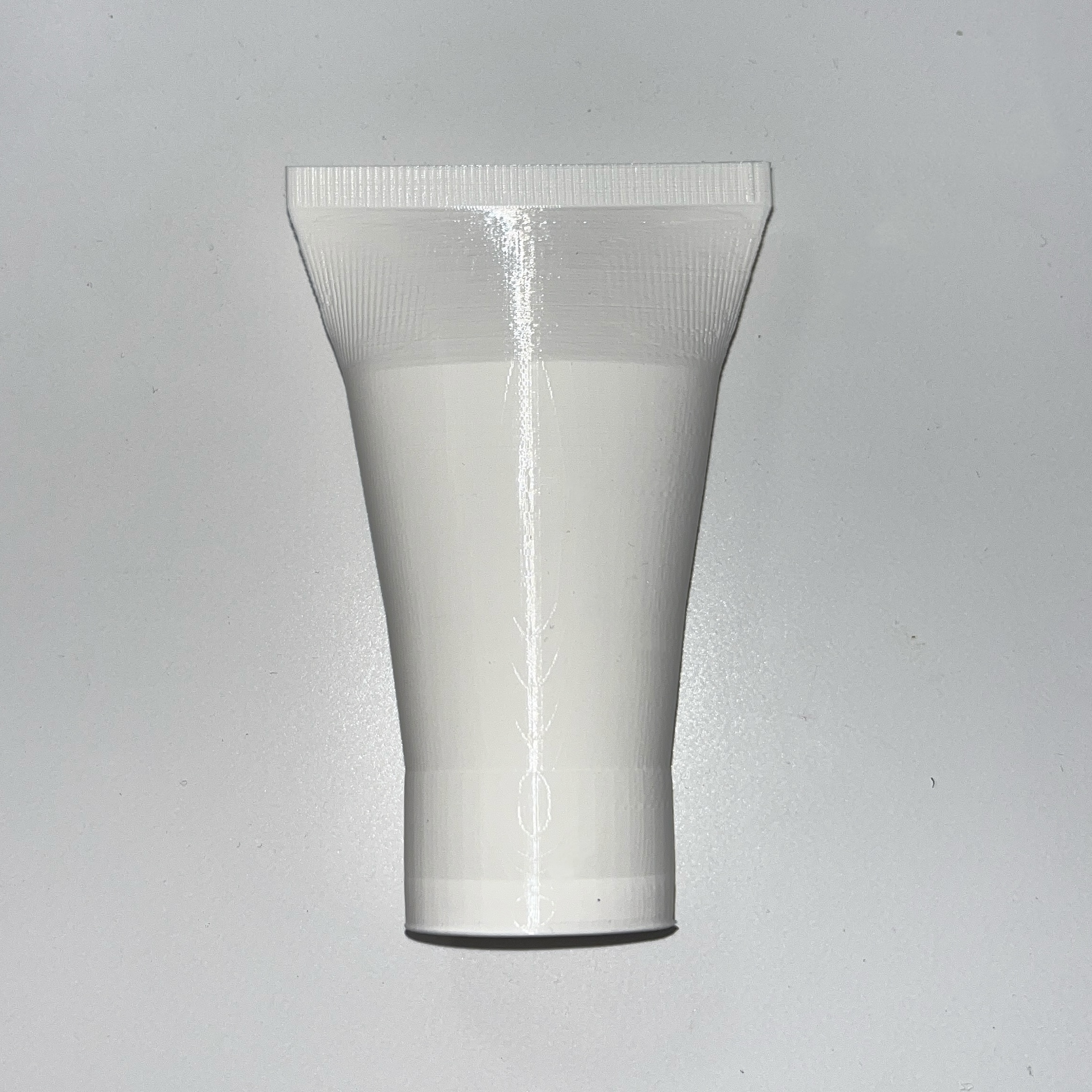

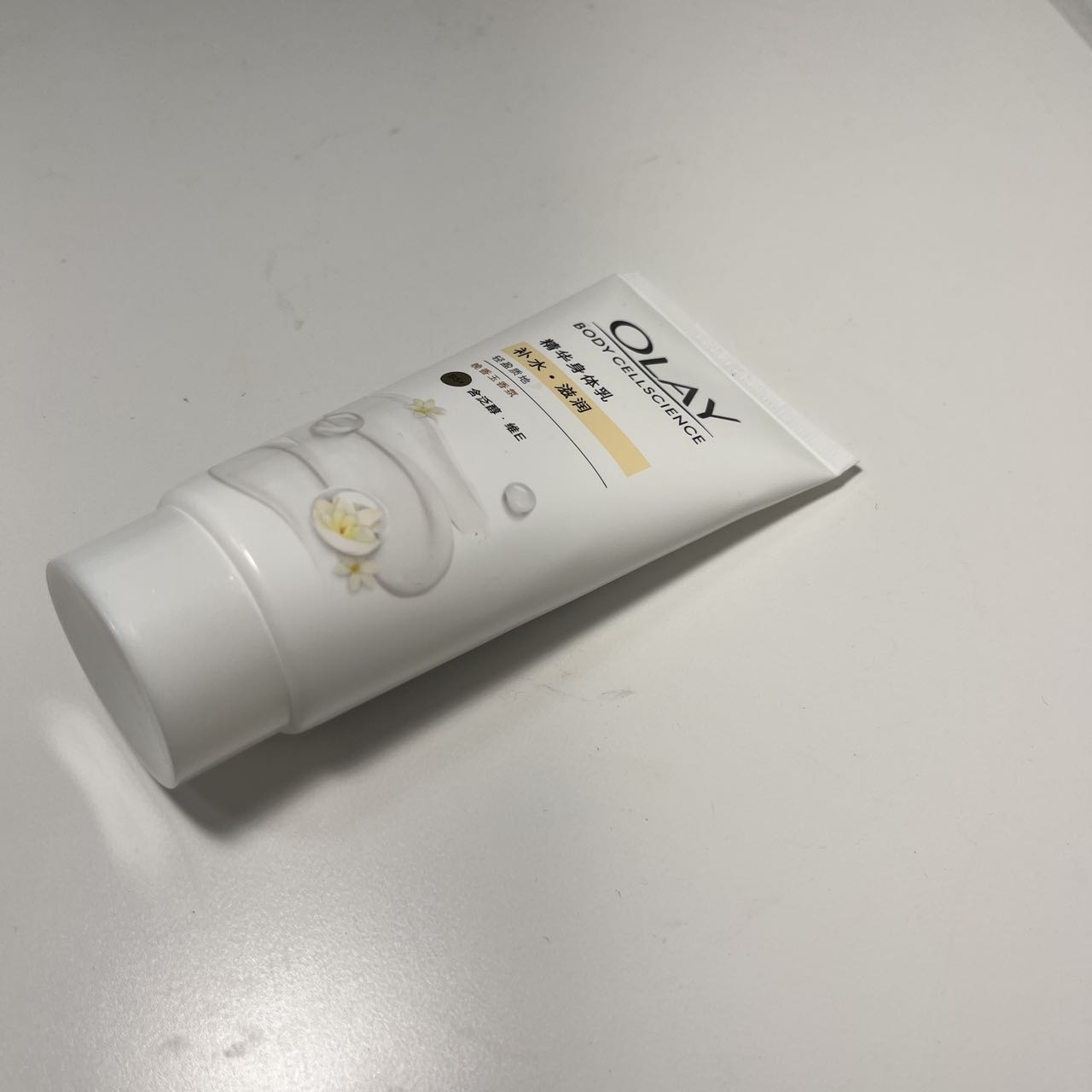

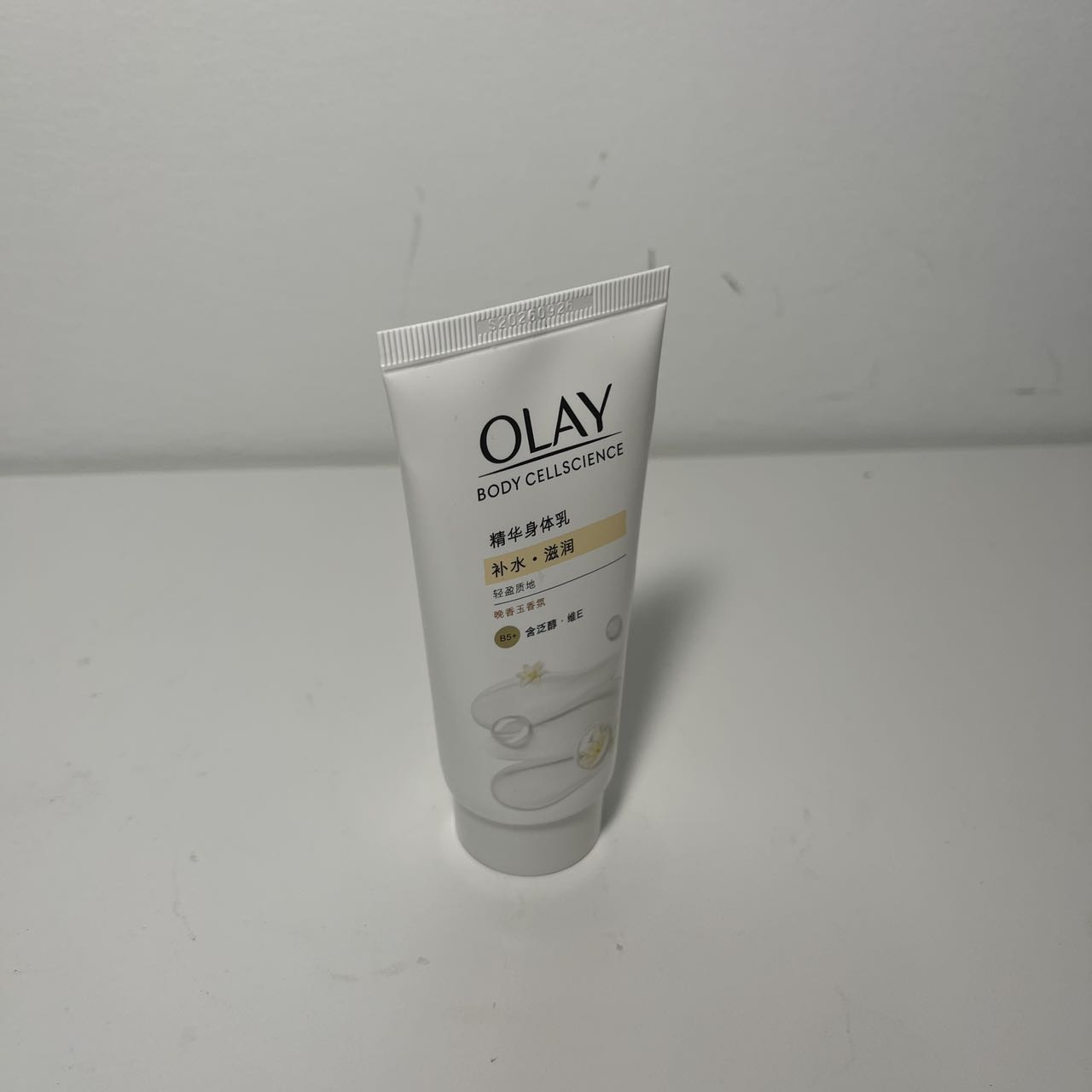

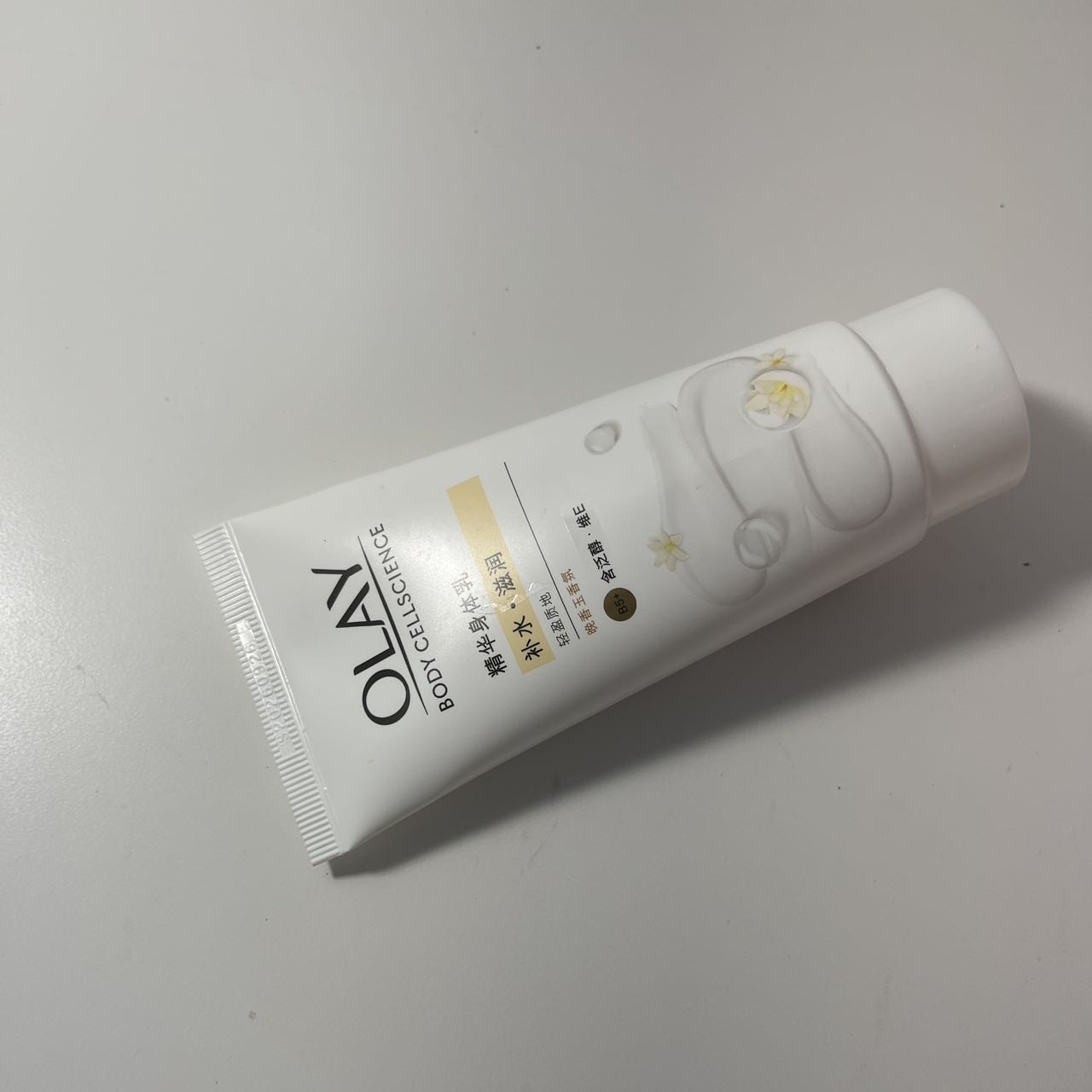

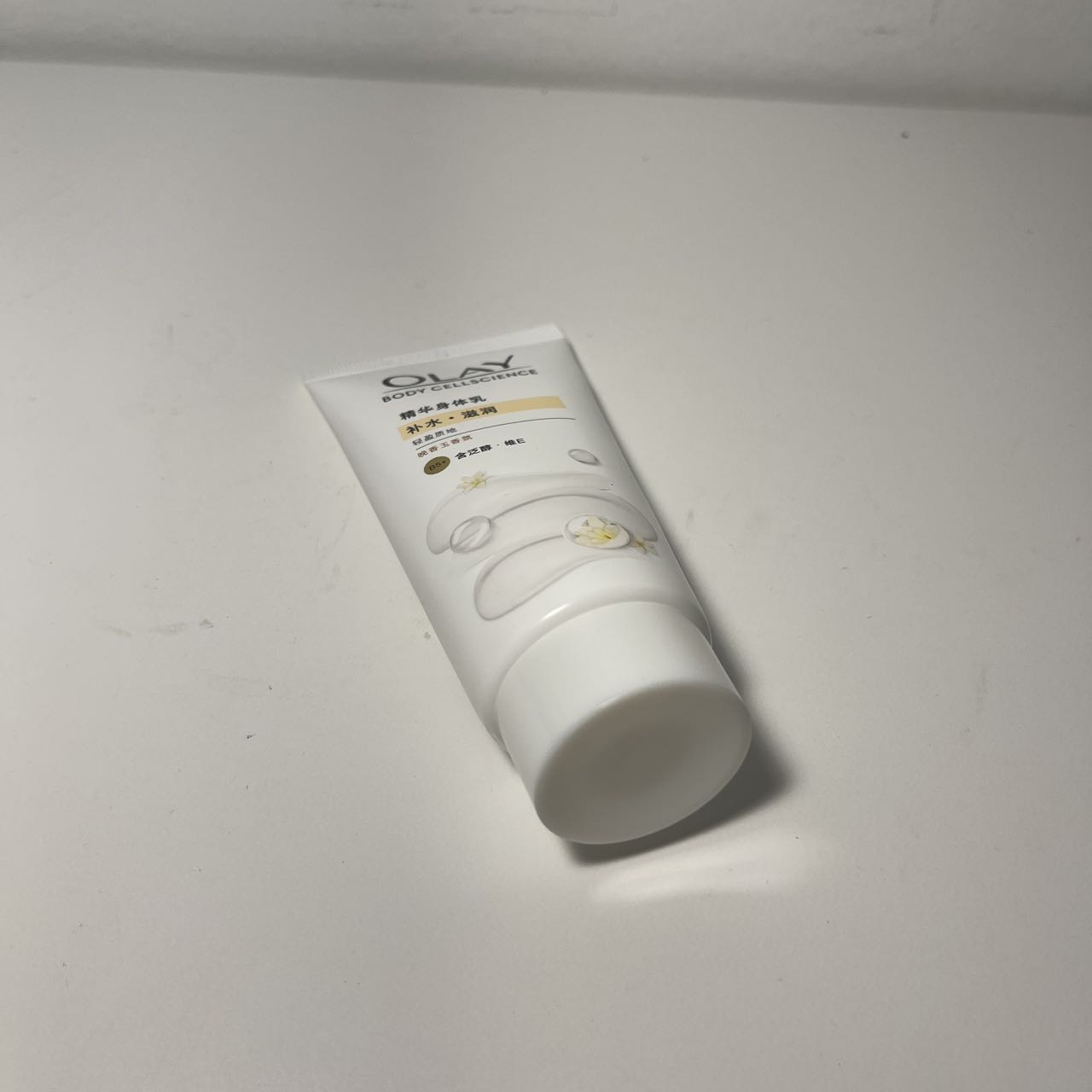

This is a model of the body lotion I printed out, I tried strawberries and water cups, strawberries because the support connecting the leaves would result in damage to the leaves in the end, and cups because too much support would result in the loss of material on its own.

I've tried a lot of model prints, and only the body milk prints have been the most successful because they don't need support and the details are well done.

Digital Published Google Model Viewer Design 1

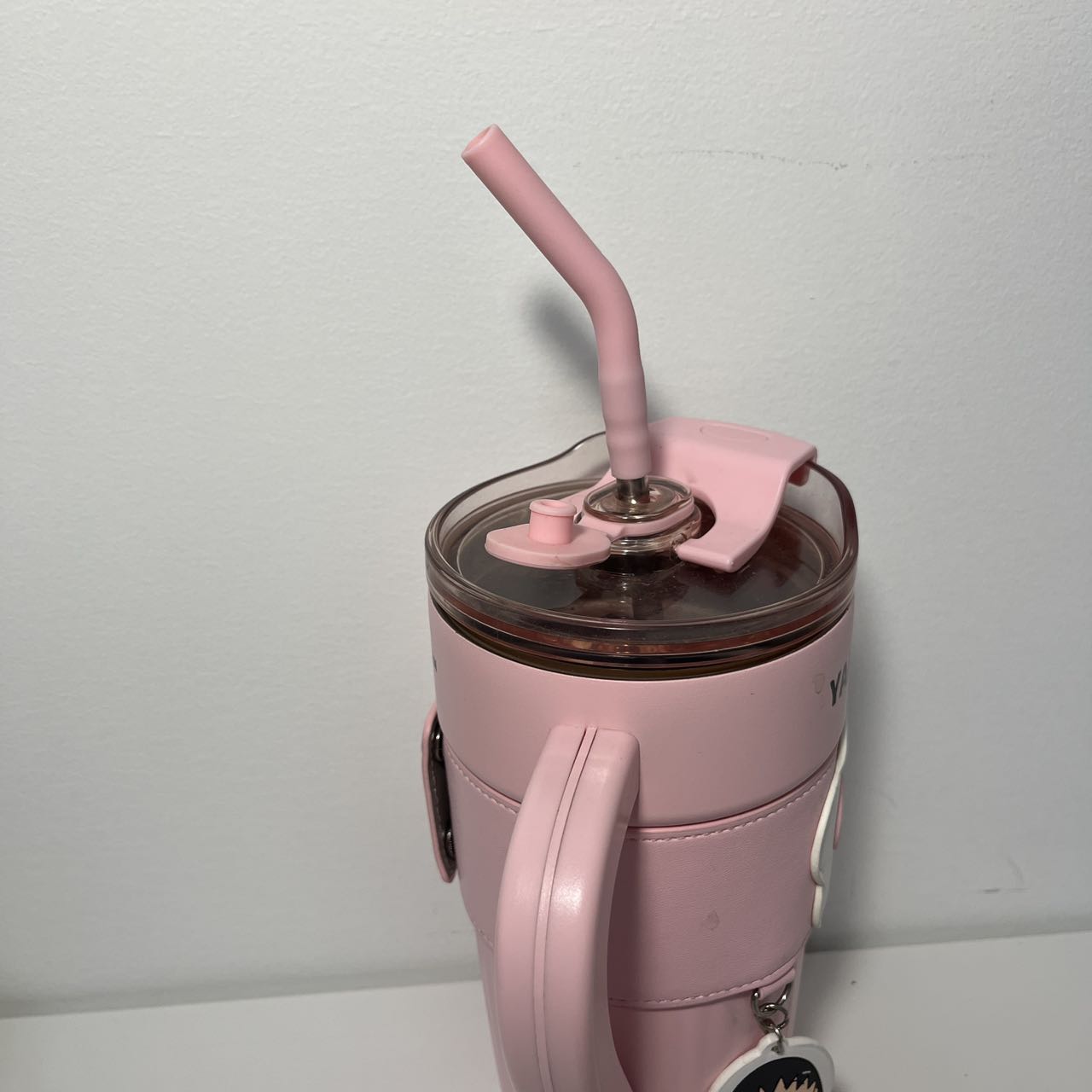

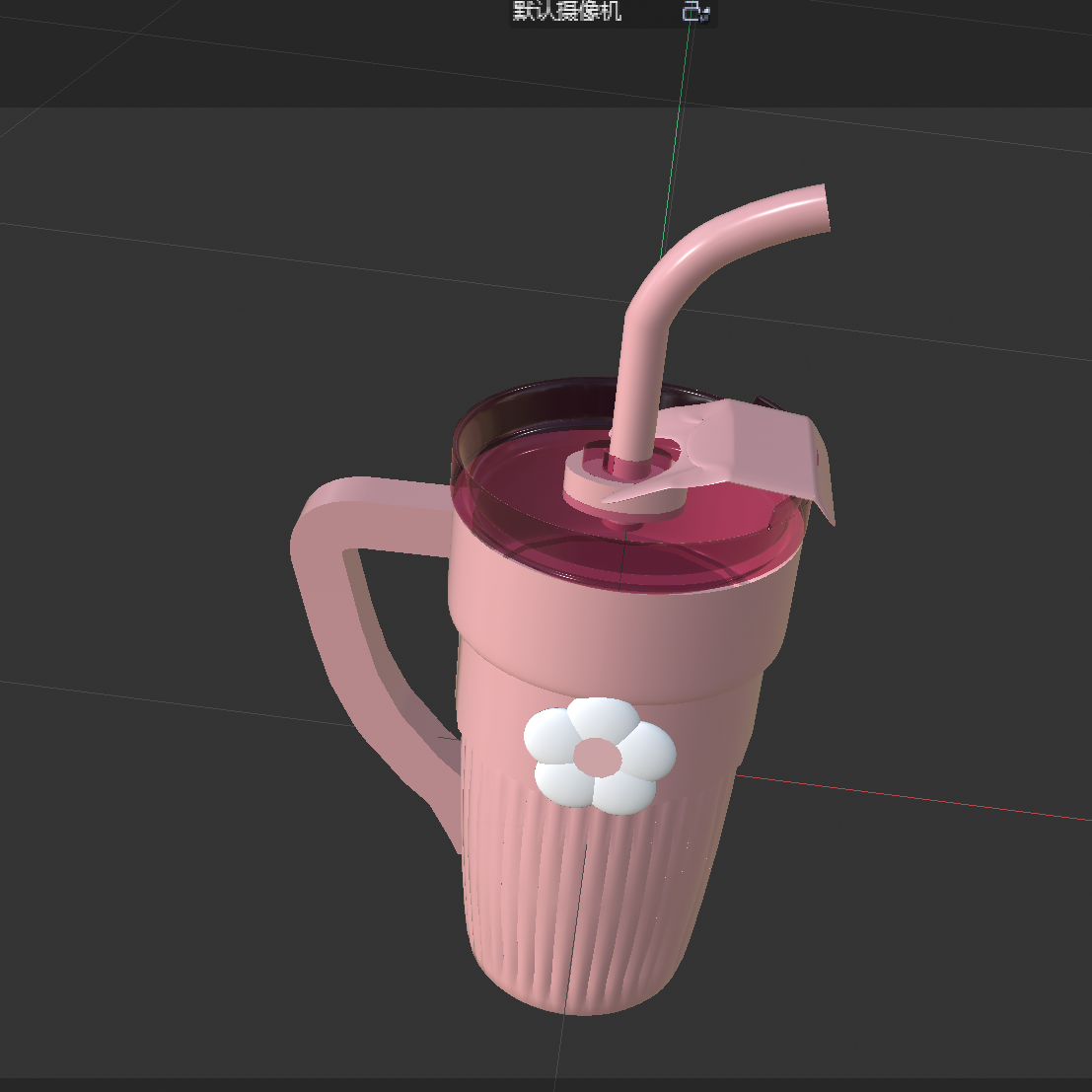

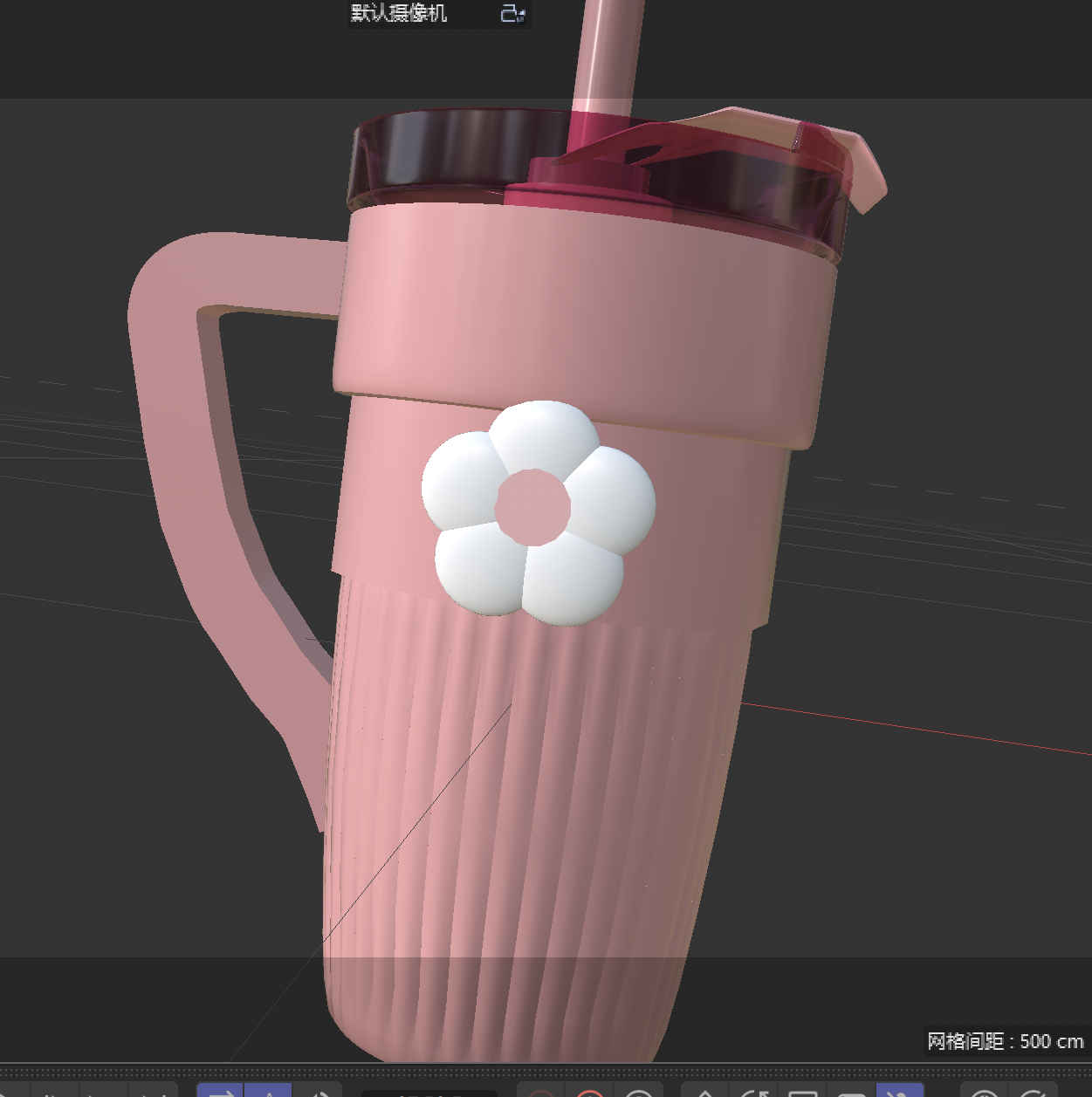

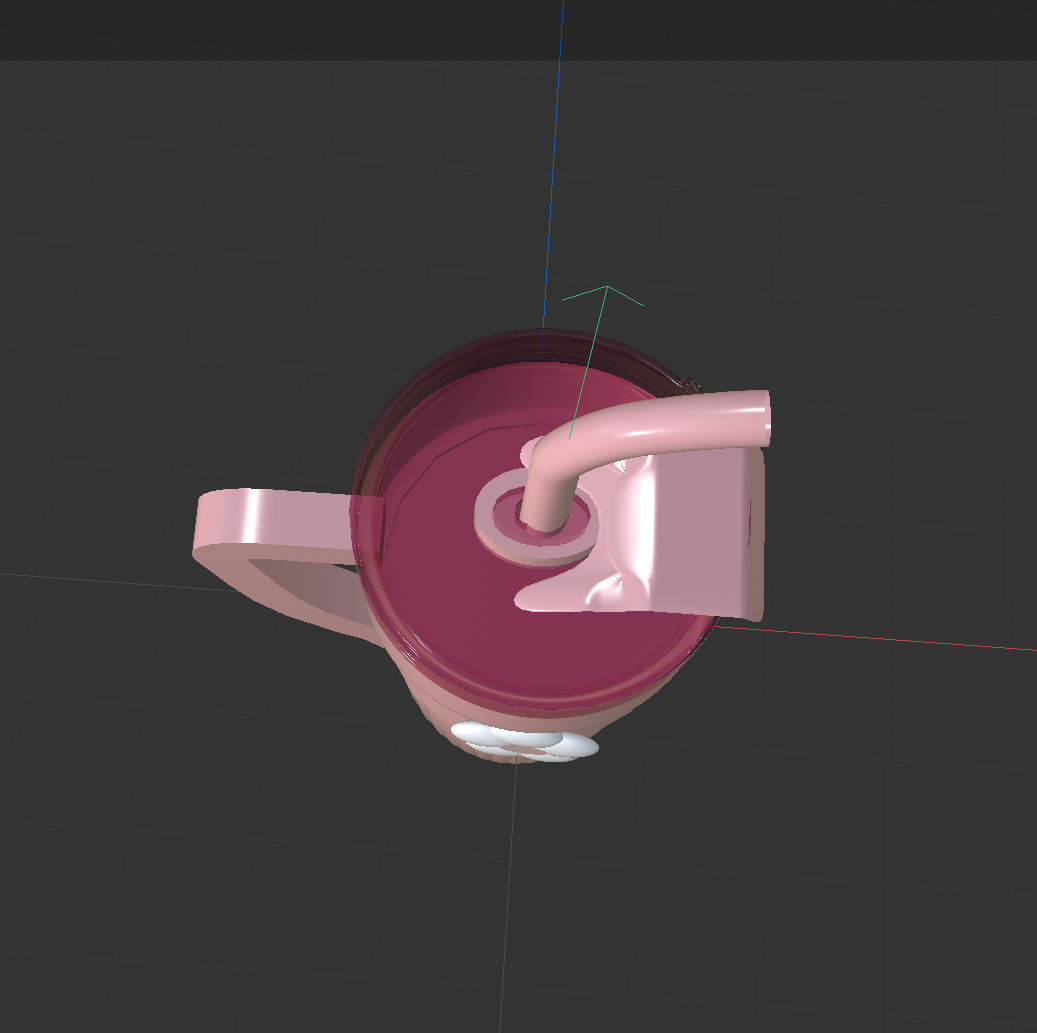

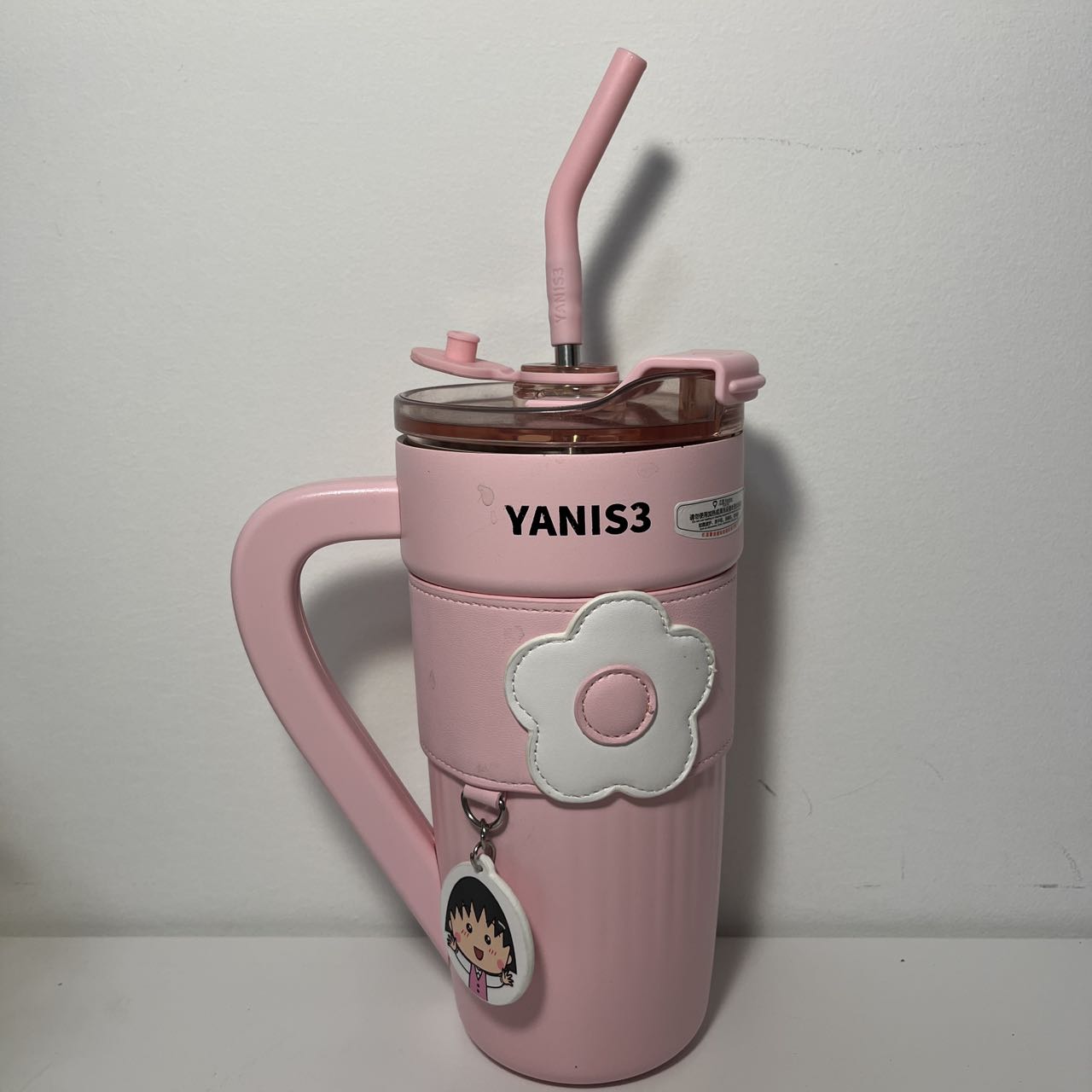

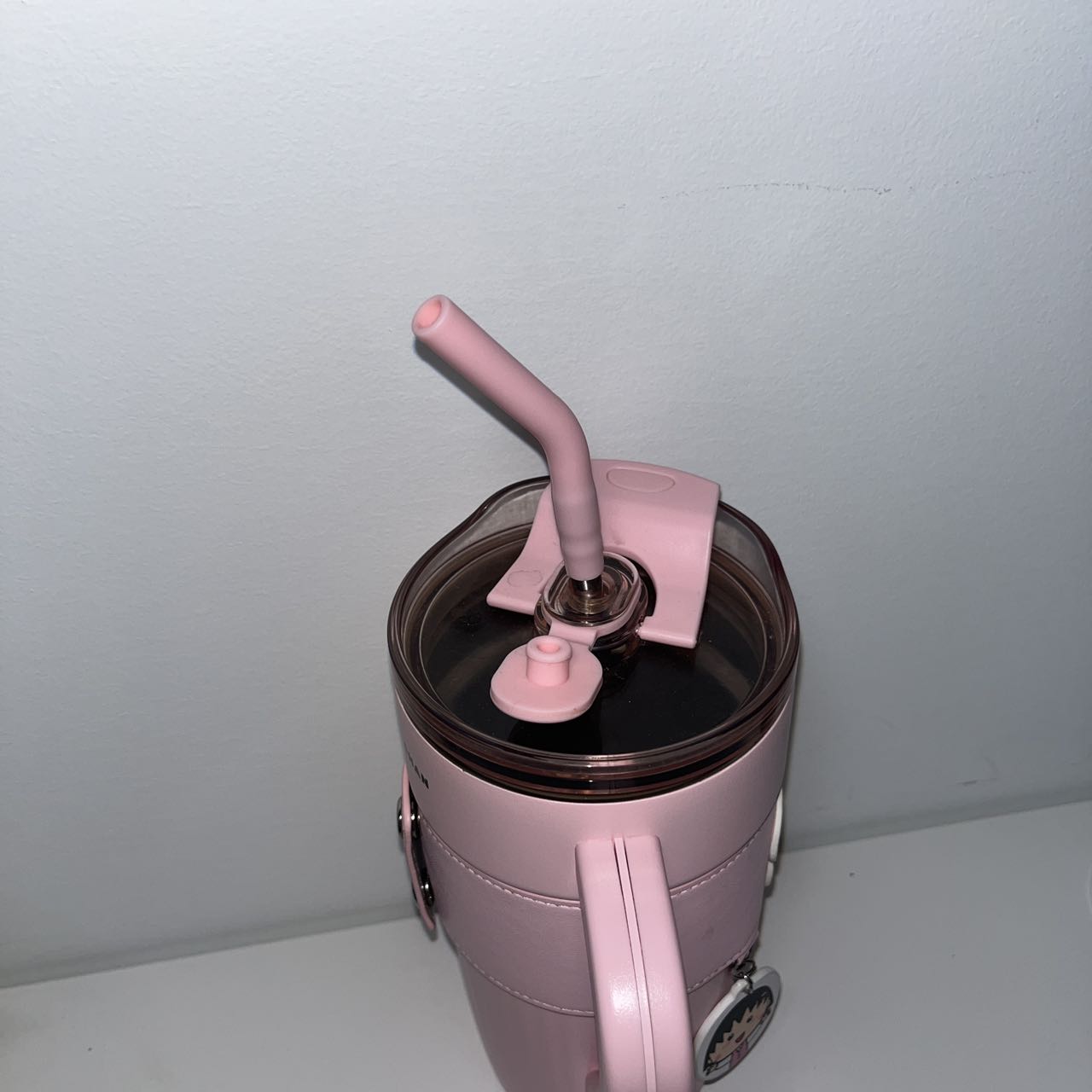

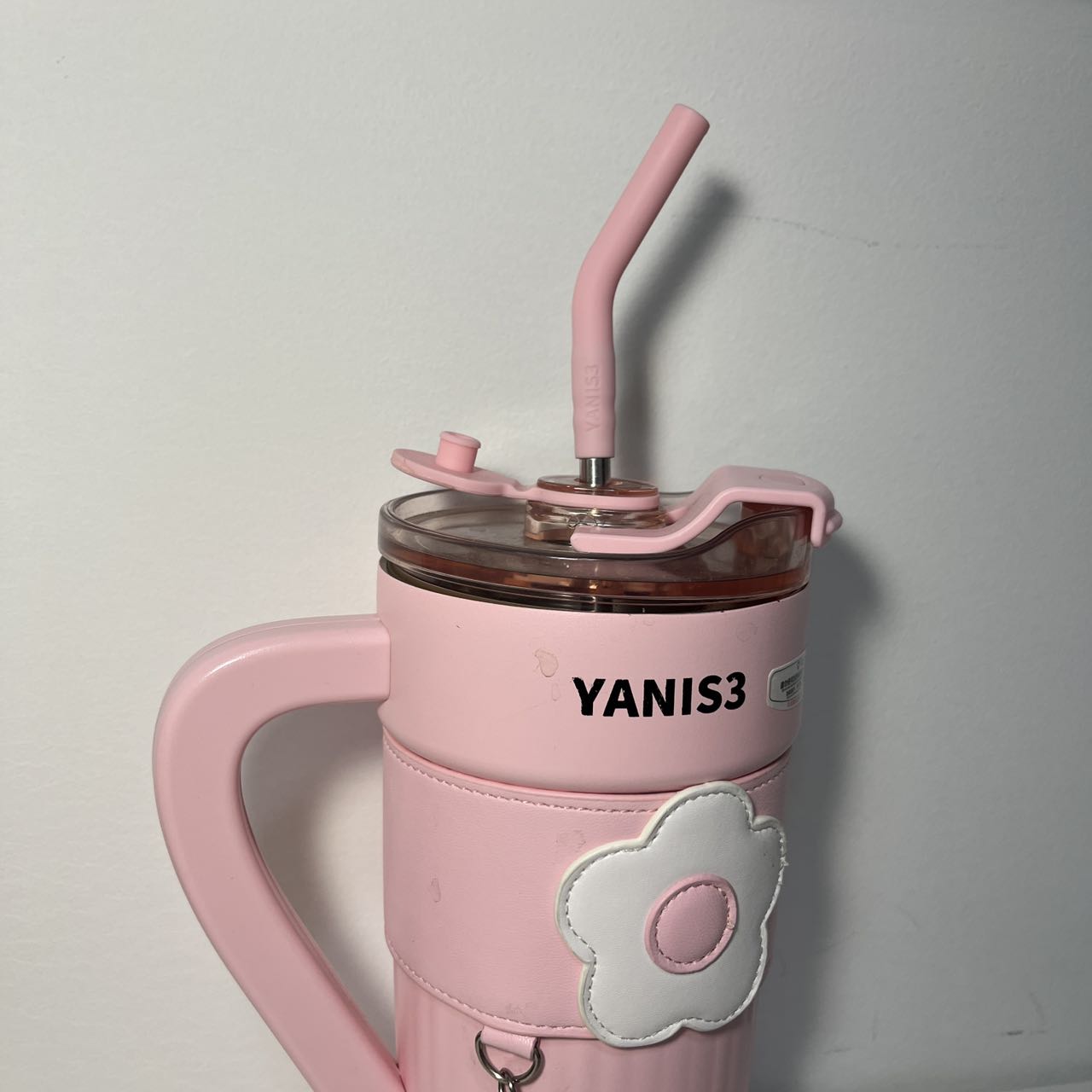

This is my modeling of a water cup, I added some details to the previous modeling as well as lighting, I also tried to print the cup, the support would make the whole object look a bit failed.

Digital Published Google Model Viewer Design 2

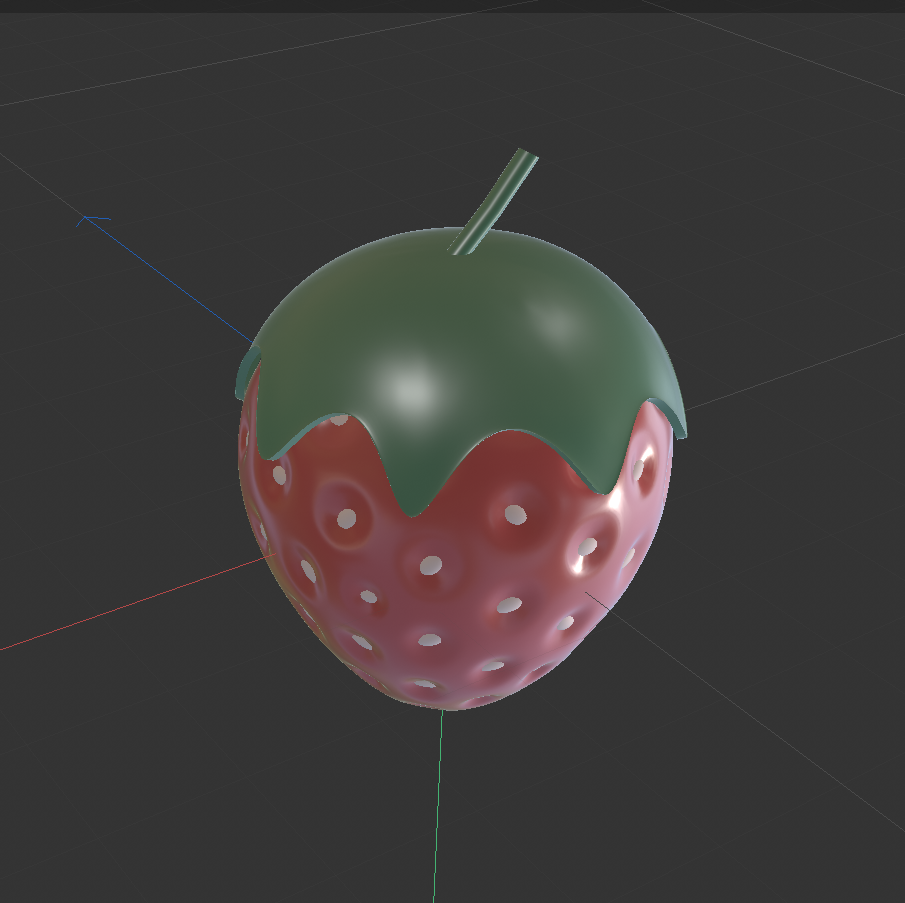

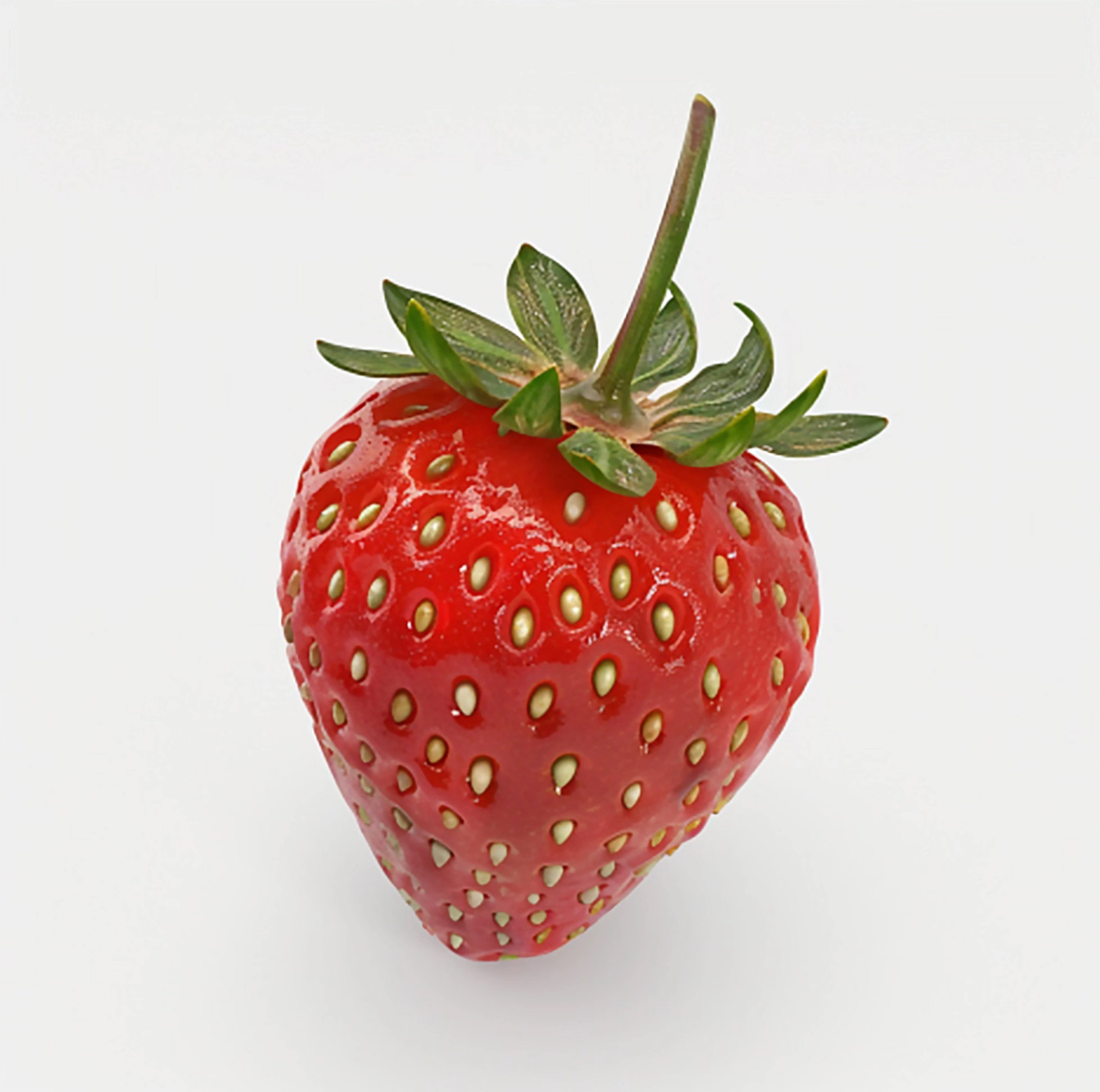

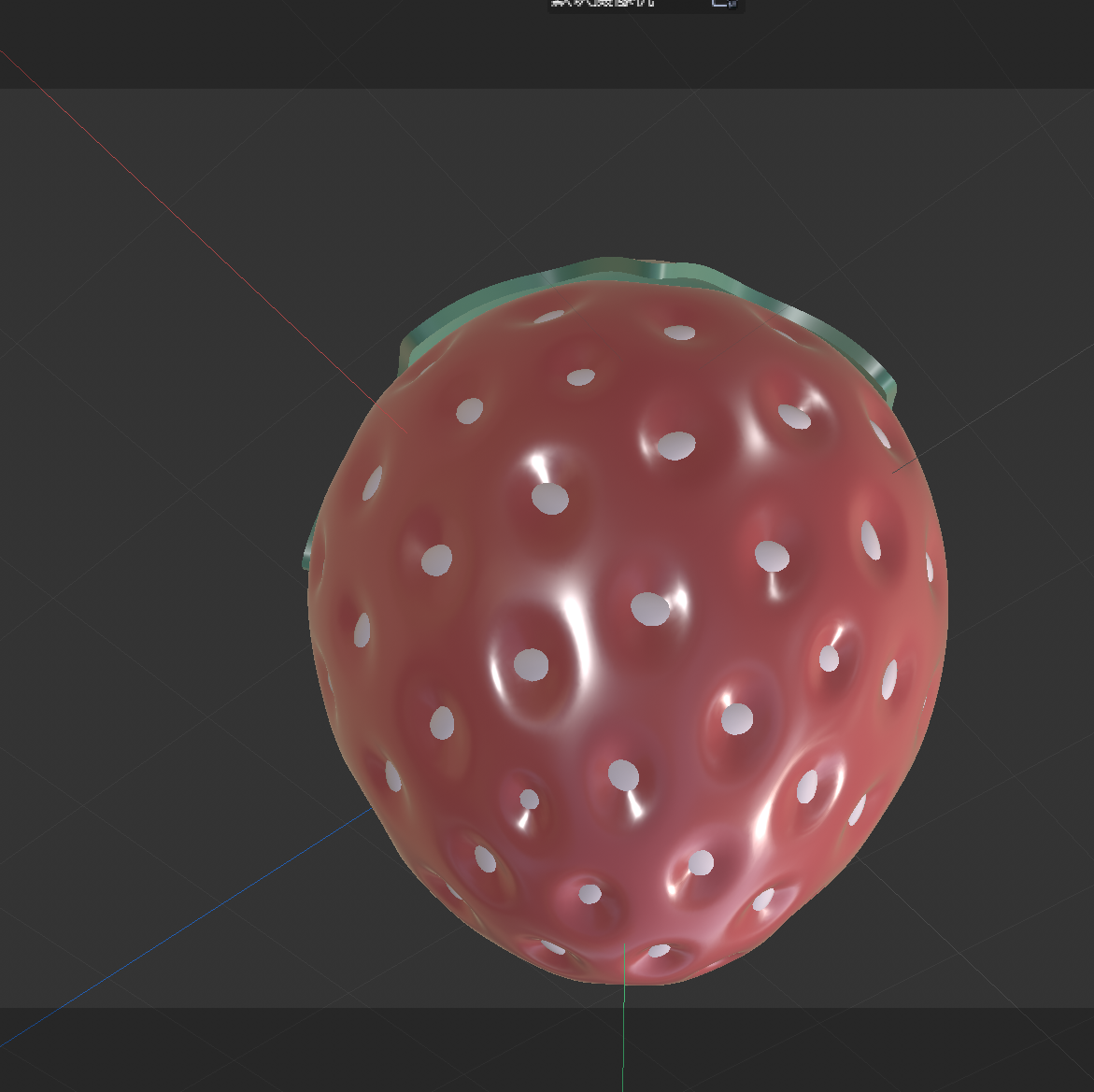

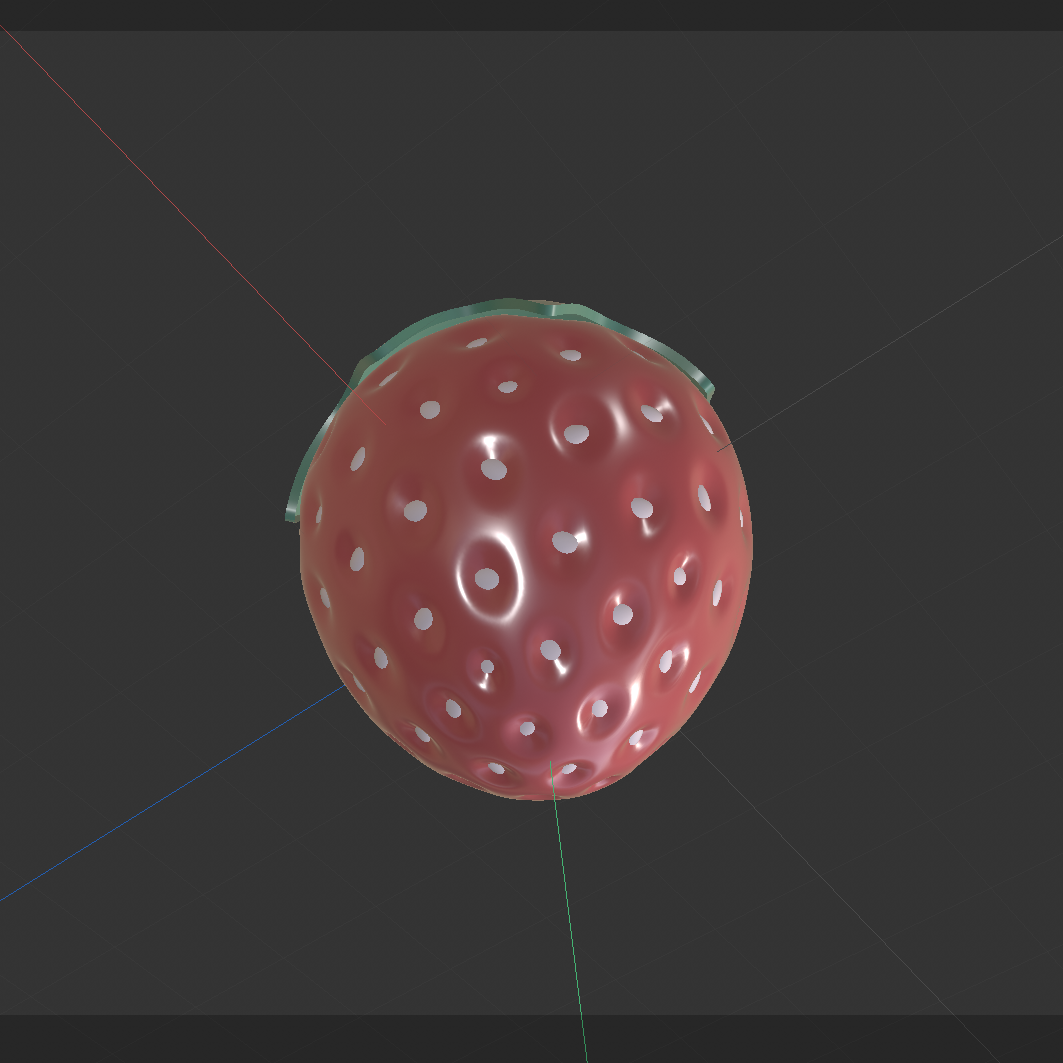

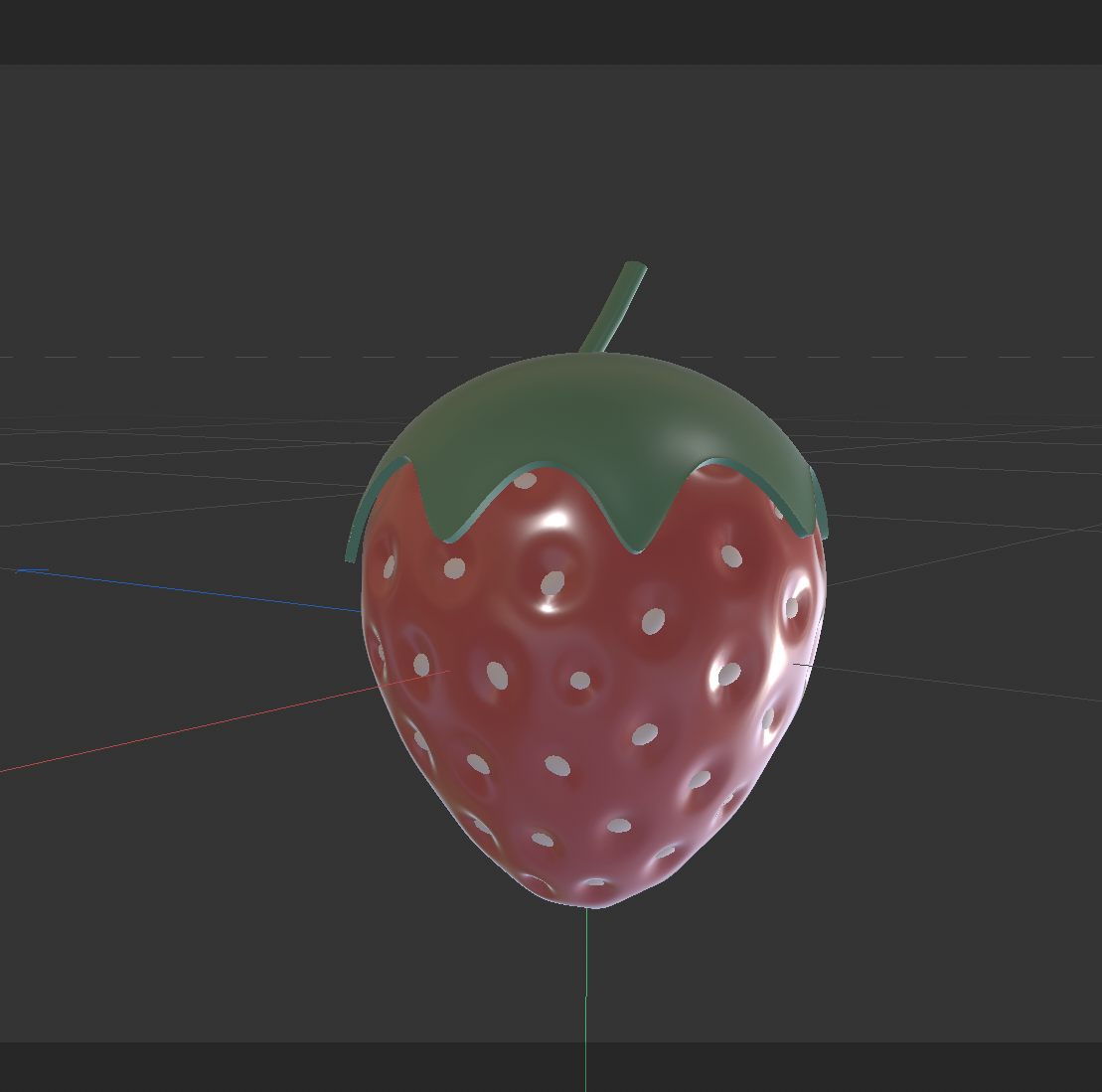

This is my strawberry model, I modified the leaves to an irregular shape compared to the previous model.

Digital Published Google Model Viewer Design 3

This is a modeling of a pumpkin lamp with a hollow inside.

Digital Published Google Model Viewer Design 4

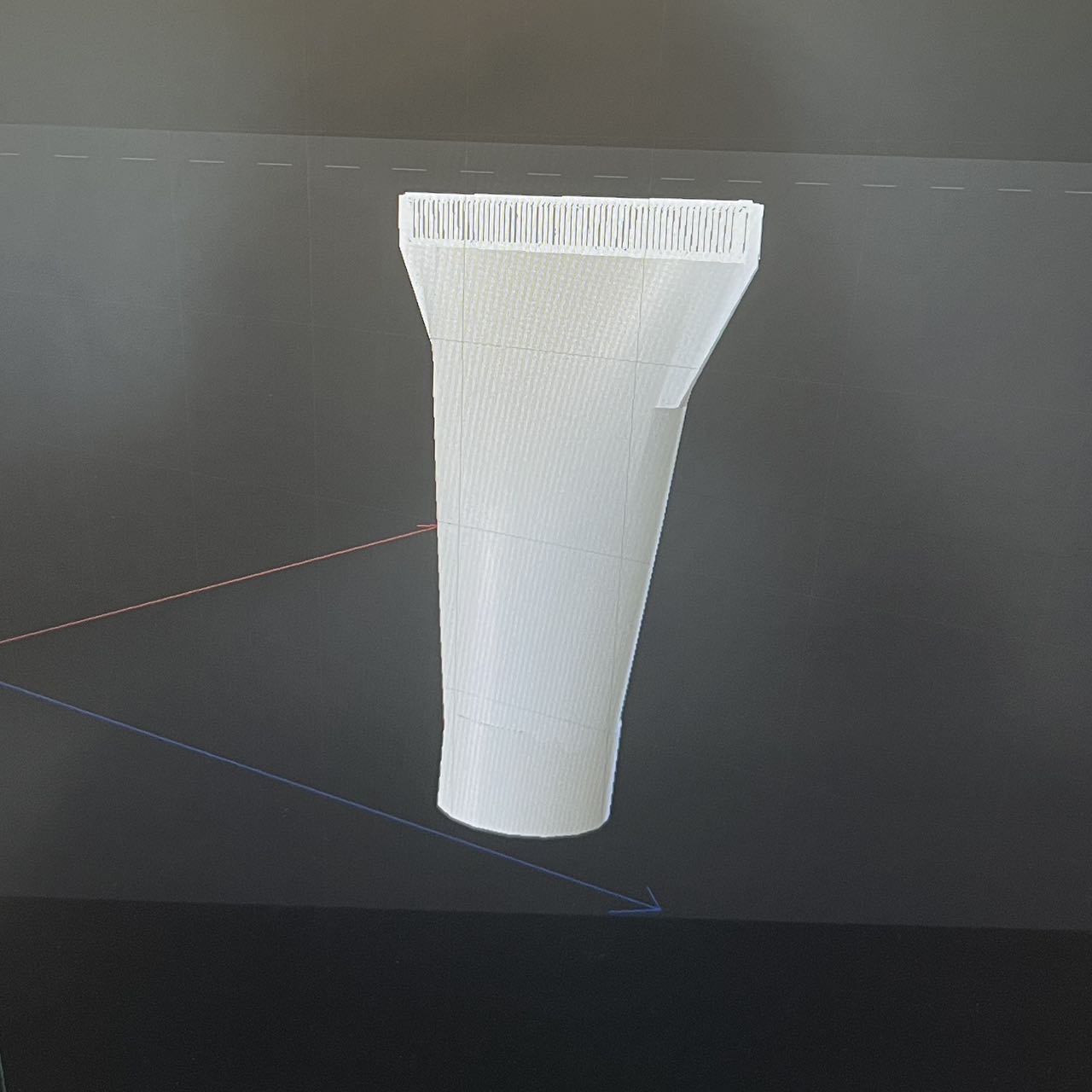

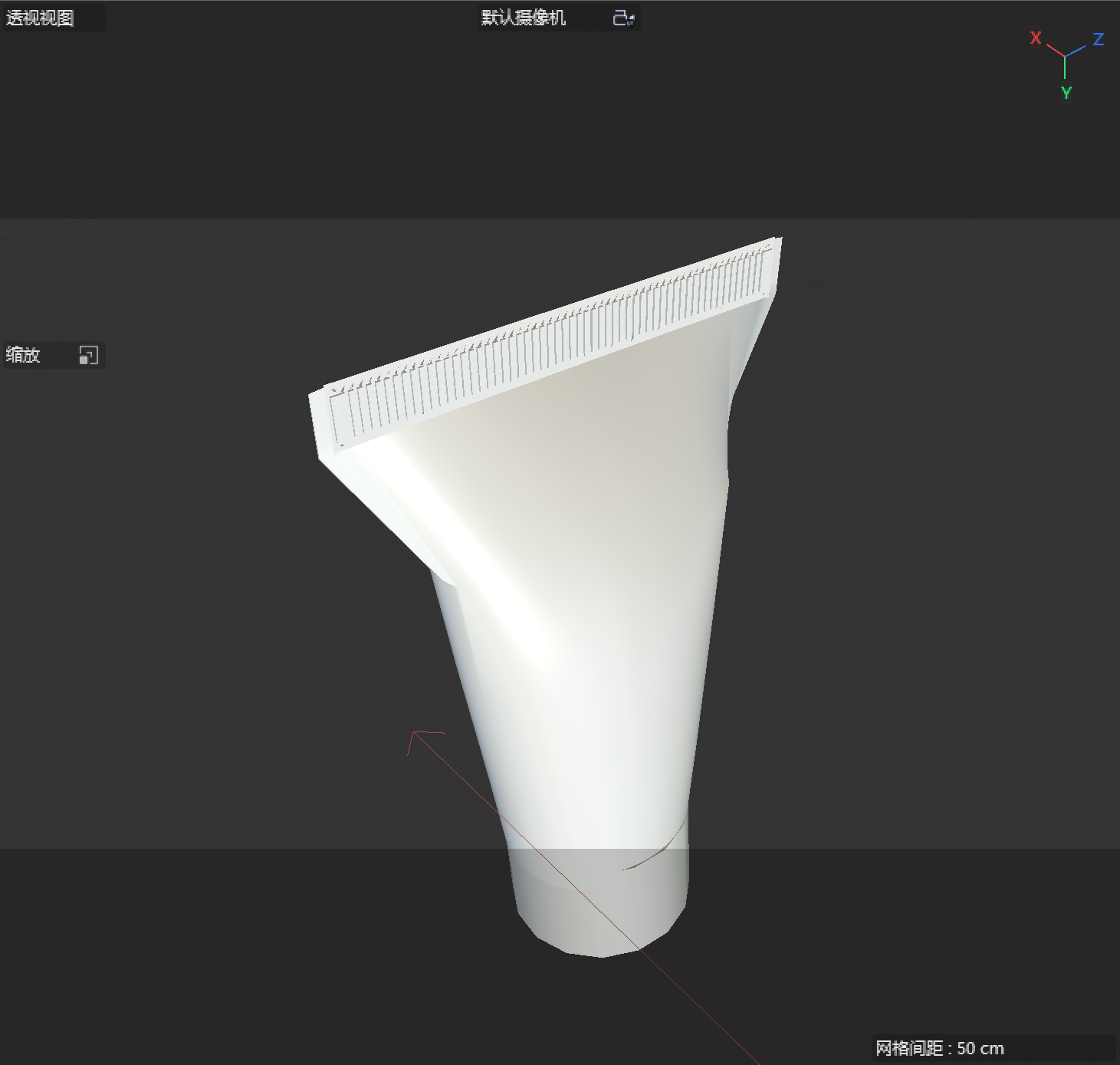

This is the modeling of my body butter, which is why it I had the most success printing it, I mainly put more thought into the details above the body butter.
